Q: Technology

Improve Your Gas Chromatography with Backflush Capillary Flow Technology enables flexible implementation of backflush on Agilent GCs for higher throughput, less maintenance, fewer recalibrations, longer column life, better results, and lower costs. GC Intelligence Built-in GC Intelligence enables you to work smarter with autonomous monitoring, self-guided maintenance procedures, remote connectivity, and other time-saving features that can improve laboratory efficiency. Retention Time Locking (RTL) Retention time locking (RTL) enables the retention times on one Agilent GC or GC/MSD system to be matched exactly on another like system using the same nominal column.

Q: How It Works

Cannabis and Hemp Testing Cannabis producers and testing labs must detect and measure various compounds in the plant and ancillary products, such as edibles, to ensure quality, consistency, and safety. They use the Intuvo GC system for fast, accurate analysis of terpenes, pesticides, and residual solvents to meet customer expectations and emerging regulations. Download ready-to-run eMethods for cannabis testing that can help accelerate your start-up time, reduce risk, and increase productivity and profitability. Drinking Water and Wastewater Testing Even miniscule amounts of certain environmental toxins can cause negative health outcomes in humans. The Intuvo gas chromatograph can be used to determine trace levels of potentially toxic pollutants in water, including volatile and semi-volatile organic compounds (VOC and SVOC), pesticides, and persistent organic pollutants (POPs). It can easily meet analytical performance criteria set by regulatory agencies for drinking water and wastewater standard methods. Food Safety Testing Billions of pounds of pesticides are used worldwide every year to grow our food. Because some of these can be harmful to people, it is imperative to test the food supply for their presence. The Intuvo GC system, combined with Agilent mass spectrometers, can be used to screen, detect, and measure pesticides at extremely low concentrations so producers, food testing labs, and consumers can be confident that contaminants are below maximum residue limits set by regulatory and standards organizations.

Question 1

Features

Accepted Answer

Guard Chips prevent column contamination, protecting downstream components and increasing column life
Intuvo no-trim GC columns require no maintenance

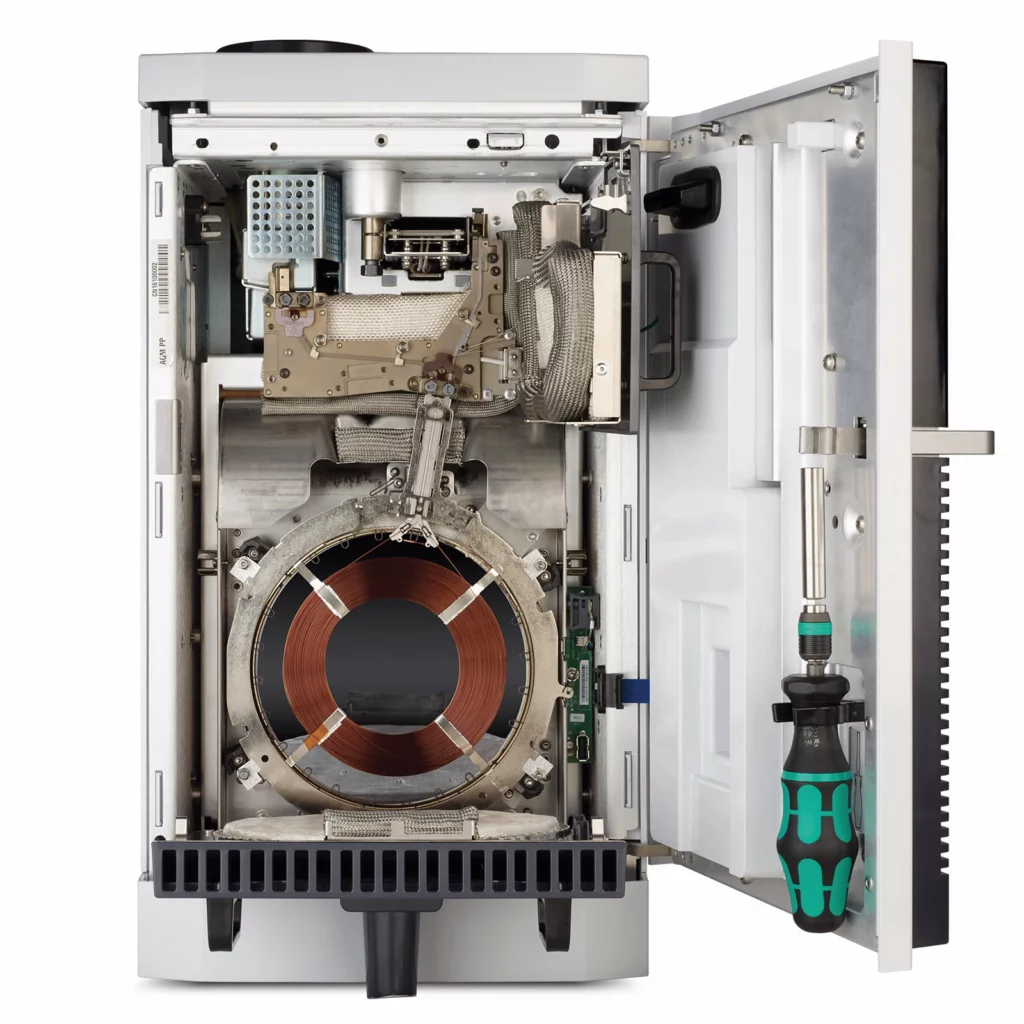

Direct heating oven delivers linear and repeatable temperature ramps from 30 °C to 450 °C at 250 °C/min
Ferrule-free, click-and-run connections allow any operator, regardless of experience, to make completely leak-free connections
Innovative flow path provides the ability to configure the GC flow path as needed, making backflush installation simple
Smart ID Keys attached to critical flow path components provide information such as configuration and column age with default parameters for configuration
Intelligent troubleshooting routines diagnose GC system problems by measuring over 100 parameters in real time and provide a step-by-step solution guide in an easy-to-read format
Large touchscreen control with the ability to deliver instrument information wirelessly through secure networks
Uses less than half the power of a conventional GC and can be plugged into any outlet without changing the wiring of the lab
Ideal platform for high-throughput or high-speed gas chromatography with fast heating and cool down
Smaller footprint than most lab GC systems with a similar range of functionality and performance to optimize valuable bench space
Gas Saver, smaller column dimensions, and faster cycle times can result in less helium consumption compared to conventional GC systems

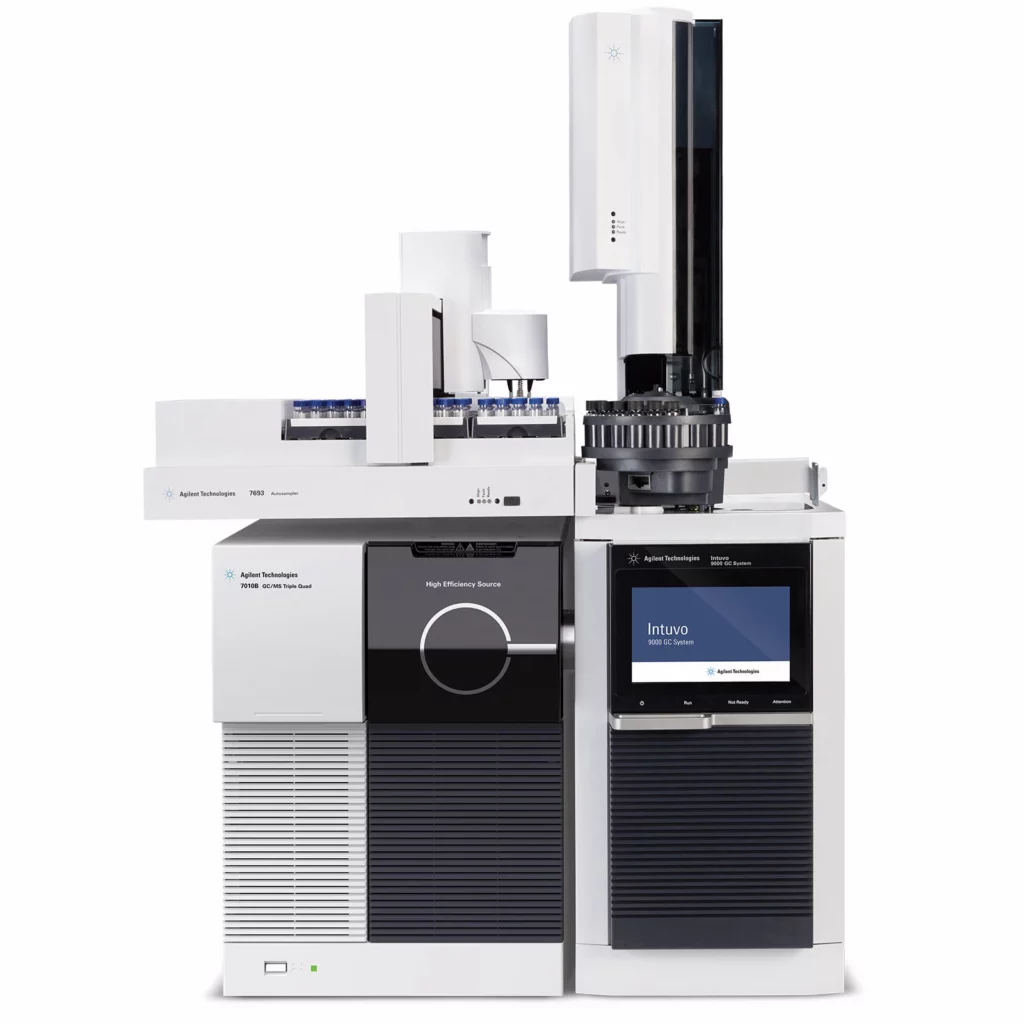

Compatible with Agilent 5977, 7000, and 7010 mass spectrometer systems
Independently audited for environmental impact throughout the product lifecycle, received My Green Lab’s ACT (Accountability, Consistency, Transparency) label

Question 2

Specifications

Accepted Answer

Capillary Flow Technology (CFT)

Integrated (backflush, splitter)

Detectors

2

Dimensions (WxDxH)

27 cm x 69 cm x 51 cm

Dual Simultaneous Injection

No

GC Detector MDLs

Premium

GC Diagnostics &#8211; Leak Check

Autonomous, hands-free

GC/MS Compatibility

Single quadrupole
Triple quadrupole

Inlets

1

Maximum Temperature Ramp Rate

250 °C/min

Operating Temperature Range

+10 °C above ambient to 450 °C

Oven Cool Down

450 °C to 50 °C in less than 3 minutes (22 °C ambient)

Peak Area Repeatability

<1% RSD

Retention Time Repeatability

<0.008%

Typical Pressure Control

0.001 psi

Valves

1

Question 3

Technology

Accepted Answer

Improve Your Gas Chromatography with Backflush
Capillary Flow Technology enables flexible implementation of backflush on Agilent GCs for higher throughput, less maintenance, fewer recalibrations, longer column life, better results, and lower costs.
GC Intelligence
Built-in GC Intelligence enables you to work smarter with autonomous monitoring, self-guided maintenance procedures, remote connectivity, and other time-saving features that can improve laboratory efficiency.
Retention Time Locking (RTL)
Retention time locking (RTL) enables the retention times on one Agilent GC or GC/MSD system to be matched exactly on another like system using the same nominal column.

Question 4

How It Works

Accepted Answer

Cannabis and Hemp Testing
Cannabis producers and testing labs must detect and measure various compounds in the plant and ancillary products, such as edibles, to ensure quality, consistency, and safety. They use the Intuvo GC system for fast, accurate analysis of terpenes, pesticides, and residual solvents to meet customer expectations and emerging regulations. Download ready-to-run eMethods for cannabis testing that can help accelerate your start-up time, reduce risk, and increase productivity and profitability.
Drinking Water and Wastewater Testing
Even miniscule amounts of certain environmental toxins can cause negative health outcomes in humans. The Intuvo gas chromatograph can be used to determine trace levels of potentially toxic pollutants in water, including volatile and semi-volatile organic compounds (VOC and SVOC), pesticides, and persistent organic pollutants (POPs). It can easily meet analytical performance criteria set by regulatory agencies for drinking water and wastewater standard methods.
Food Safety Testing
Billions of pounds of pesticides are used worldwide every year to grow our food. Because some of these can be harmful to people, it is imperative to test the food supply for their presence. The Intuvo GC system, combined with Agilent mass spectrometers, can be used to screen, detect, and measure pesticides at extremely low concentrations so producers, food testing labs, and consumers can be confident that contaminants are below maximum residue limits set by regulatory and standards organizations.

Popular Keywords

Categories

Popular Keywords

Categories

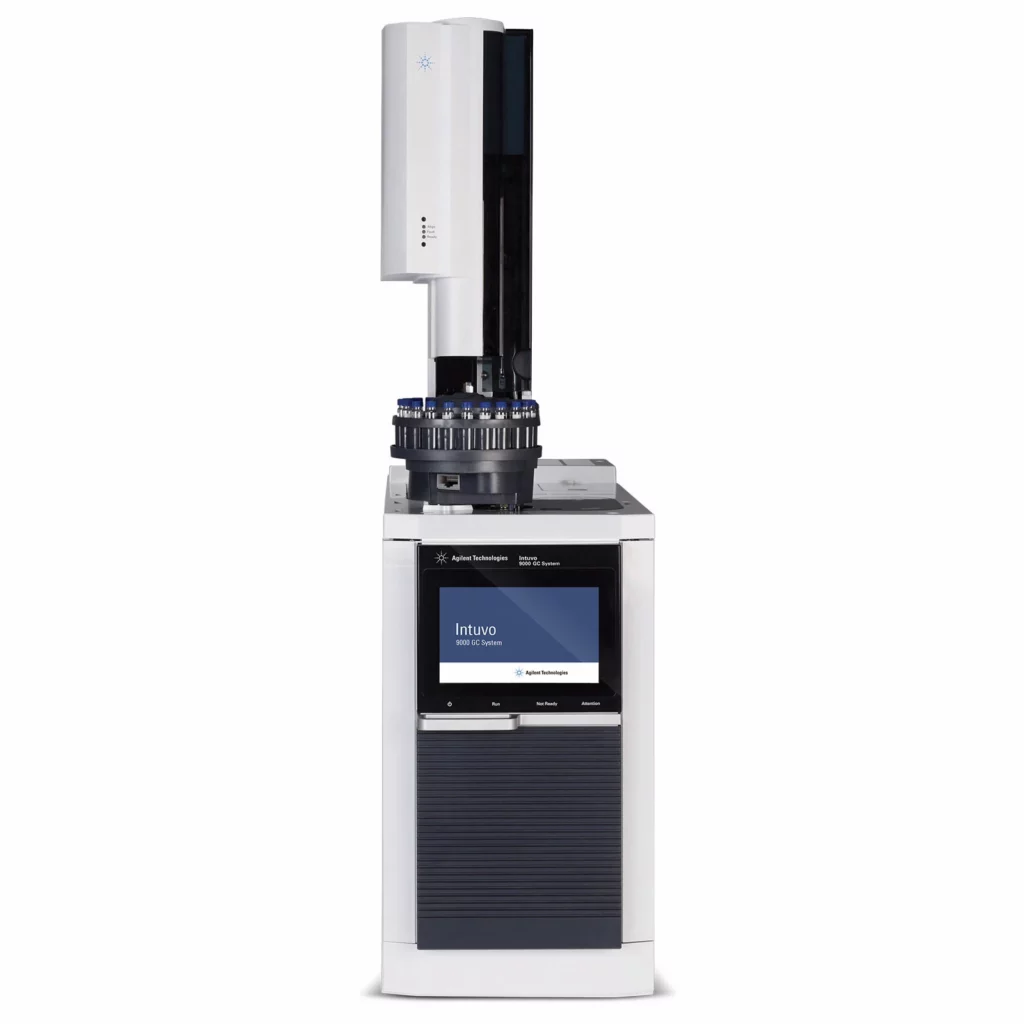

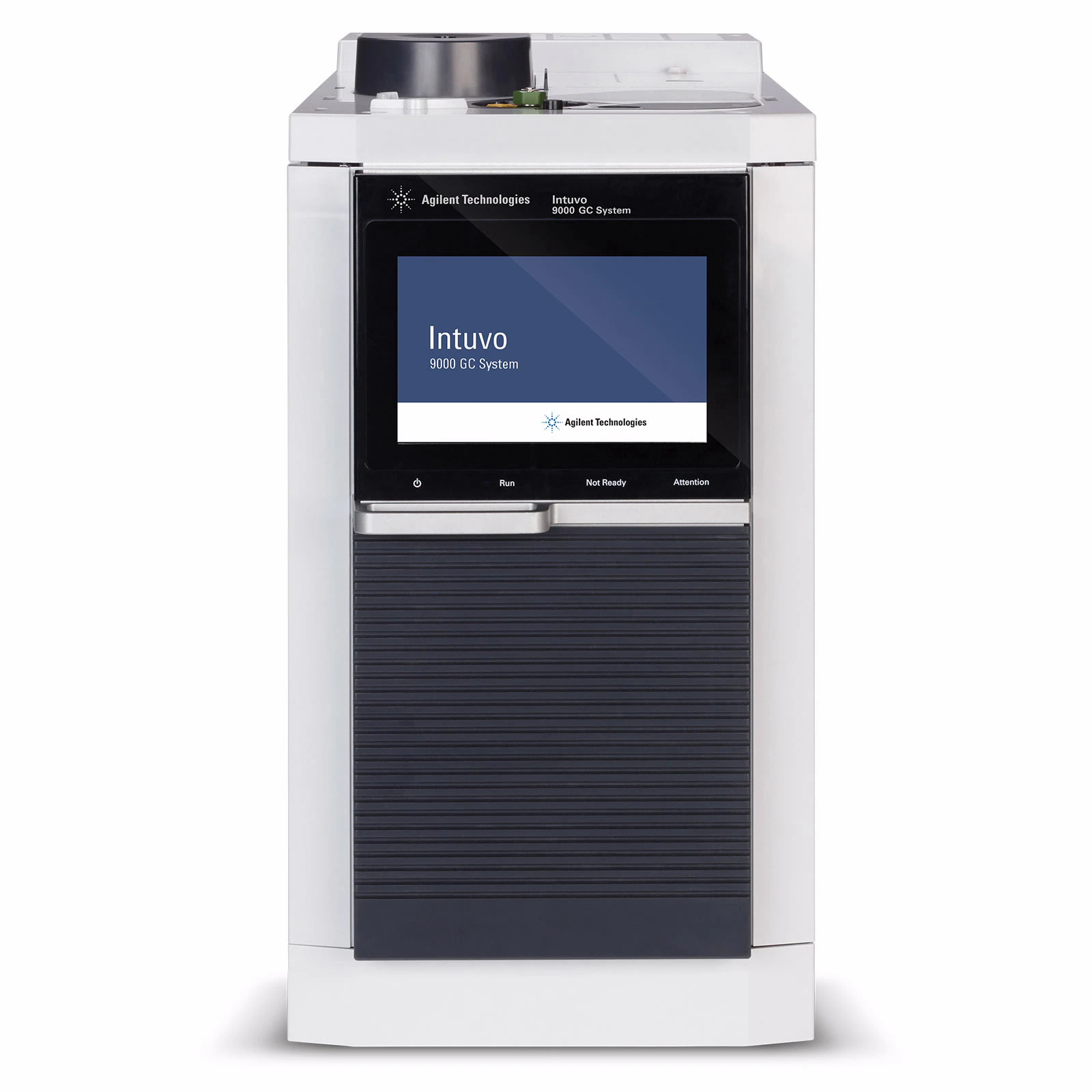

Intuvo 9000 GC System
