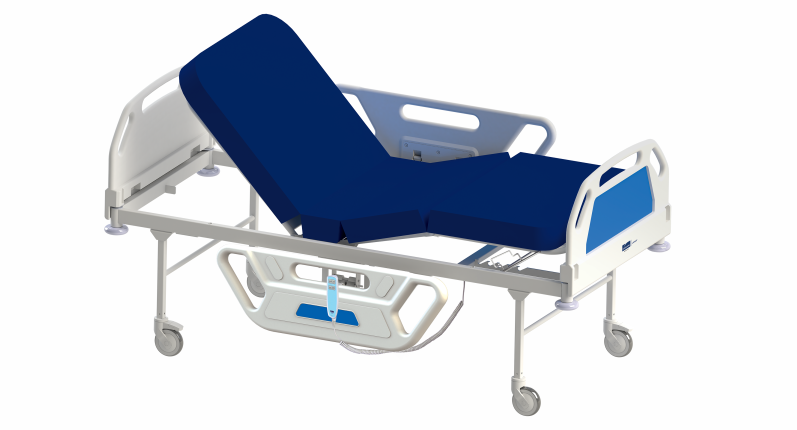

BX2000 SEMI FOWLER BED

The BX2000 semi fowler bed has the facility to raise the back and upper leg sections which are operated by crank mechanism provided at the foot end of the bed. The raising section allows the nursing staff to change positions for various activities and clinical positions with relative ease.

BX2000 SEMI FOWLER BED

Product Details

Features

Raised backrest

Two section metallic perforated top

Easily detachable head and foot boards

Pre-treated and epoxy powder coated MS parts

Provision for IV Pole

Safety buffers at four corners

Fixed polymer moulded handle

Pre-treated and powder coated finish

Removable handle

Supplied in SKD condition

Technical Specifications

Feature	Dimension/Range
Bed Frame Dimension*	2005 mm x 920 mm, 79″ x 36″ (L x W)
Mattress Platform*	1880 mm x 810 mm, 74″ x 32″ (L x W)
Buffer to Buffer*	2050 mm x 970 mm, 84″ x 38″ (L x W)
Buffer To Handle	2210 mm, 86″
Backrest Angle**	0° to 70°
Safe Working Load	150 kgs
Patient Weight Bearing Capacity	110 kgs

Additional Accessories

Two section mattress with 4” thick PU foam of 40 density covered with PVC
Two section mattress with 3” thick PU foam of 32 density covered with PVC
Telescopic IV Pole with 2 hooks
Telescopic IV Pole with 4 hooks
Orthopaedic traction pulley for trauma cases
Fixed polymer moulded handle (set of two)
Moulded chart holder
Mattress arrestor (set of two)
Mosquito net poles
Rubber buffer (4”) (set of four)
Urine bag holder

Railings and Legs

Collapsible type epoxy powder coated railing (pair)
Collapsible type epoxy powder coated MS safety side railing with SS tubes (pair)
Swing down type epoxy powder coated MS safety side railing (pair) (factory fitted)
Collapsible type epoxy powder vertical safety side railing (pair)
Collapsible type full-length type SS railing with epoxy powder coated frame (pair)
H’ type legs 910 mm (36″) width & 600 mm (24″) height with rubber shoes
H’ type legs 910 mm (36″) width & 450 mm (18″) height with rubber shoes
H’ type legs (BIG ANGLE) 910 mm (36″) width & 600mm (24″) height with125mm (5″) dia high grade synthetic body castors, two with brake, two without brake

- H’ type legs with 910mm (36″) width & 600 mm (24″) height: 125mm (5″) dia synthetic body castors, two with brake, two without brake
- H’ type Legs 910 mm (36″) Width & 450mm (18″) height with 125mm(5″) dia high grade synthetic body castors, two with brake, two without brake
- H’ type legs 910 mm (36″) W & 450 mm (18″) height with 125mm(5″) dia synthetic body castors, two with brake, two without brake
