Moyo

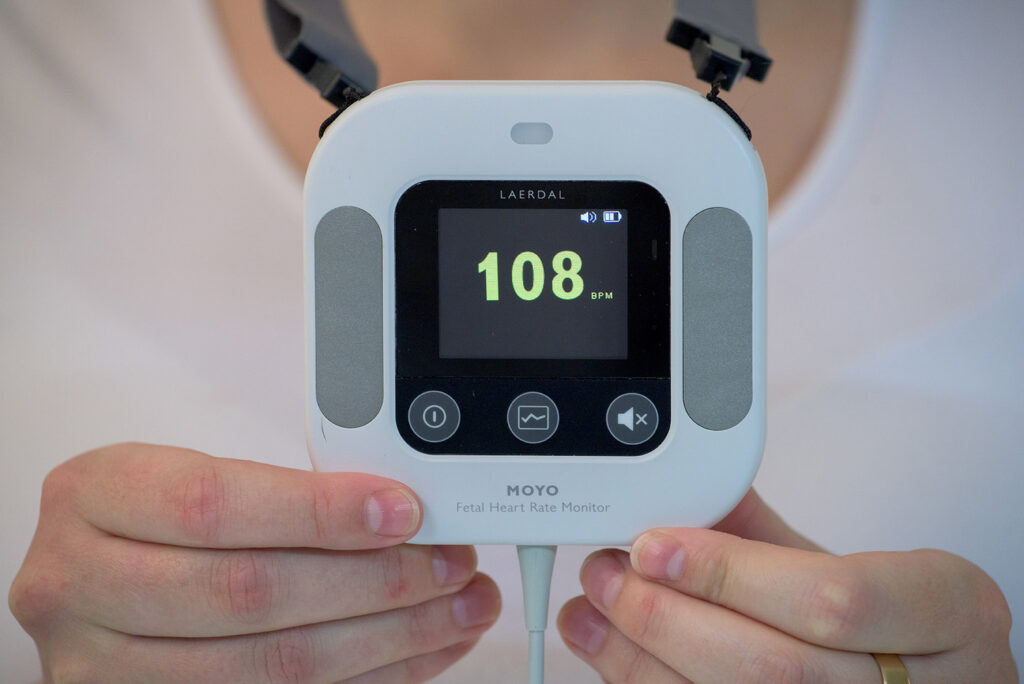

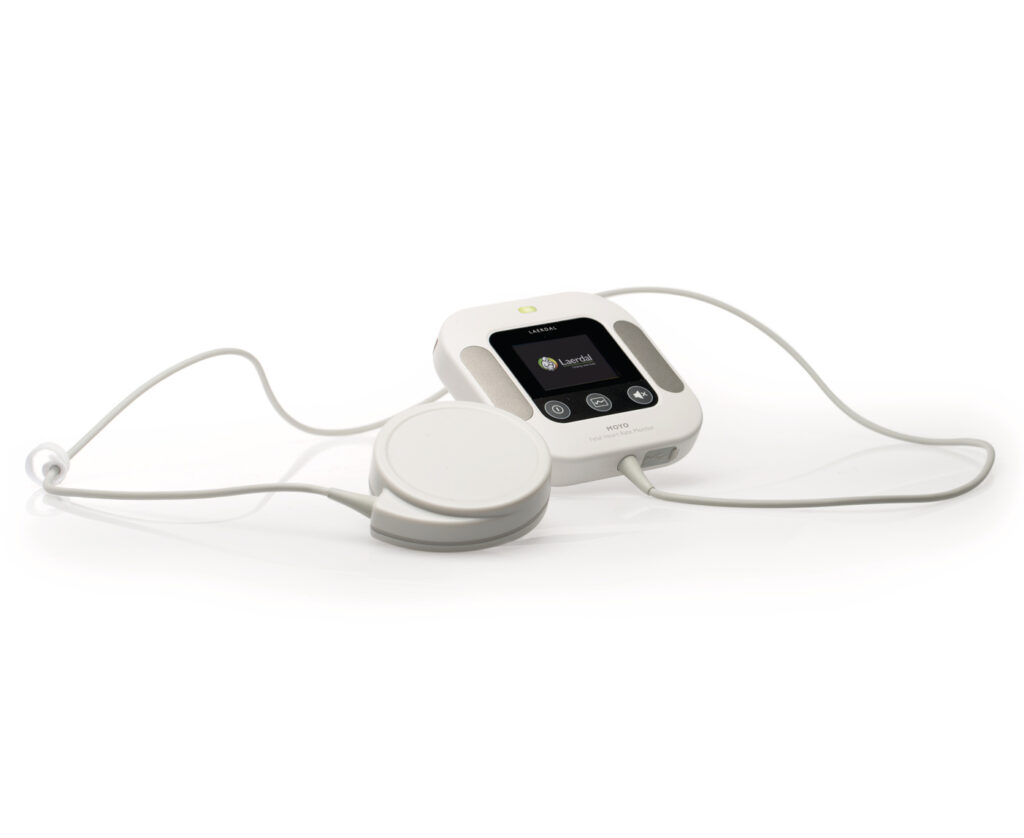

Moyo is a compact digital fetal monitor used during labor to help healthcare providers make timely, informed decisions by providing quick and accurate feedback on fetal heart rate.

Product contains lithium-ion battery.

Moyo

Product Details

Features

Both intermittent and continuous monitoring
9-crystal sensor for better accuracy
Differentiates the maternal and the fetal heart rate
30-minute histogram display of the FHR
Audio-visual alarm if abnormal FHR is detected
Lightweight and portable, can monitor continuously, even while the mother is moving around
Internal rechargeable battery

Specifications

Size: 96 x 96 x 24 mm (W x H x D, without cable and ultrasound transducer)
Weight: 300 g (main unit + ultrasound transducer)
Operating temperature [°C]: 0 to +40
Storage temperature [°C]: -20 to +60
CE or Notified Body Number: CE2460
Product conformity with standards: IEC 60601-1, ISO 10993
Battery:
- Run time (full charge on fresh battery): >10 hours
- Internal rechargeable battery, Lithium-ion, 3.7 V, 2600 mAh
- Lithium battery energy content [Wh]: 8,9
- Lithium Battery Weight: 45g
- Are Batteries Required? Yes (rechargeable, embedded in product)
- Number of Lithium-ion cells: 2
- Storage requirement: Battery needs to be recharged every 12th month when product is not in use.
Materials:
- Main body: ABC/PC, stainless steel
- Ultrasound transducer: ABS
- Transabdominal belt: high elastic polyester, non-latex
- Neck strap: Polyester, non-latex
Ultrasound Transducer:
- Display range: 30-250 bpm
- No detectable heart rate or heart rate <30 bpm displayed as “-?-“
- Accuracy: short term average +/-5% or +/-5 bpm, whichever is greater, in the range of 50 – 150 bpm
Maternal HR Electrodes:
- Display range: 50-250 bpm
- No detectable heart rate or heart rate <50 bpm displayed as “-?-“
- Accuracy: short term average +/-5 bpm in the range of 50-200 bpm
Reprocessing methods:
- Spray 70% ethanol on the surface of Moyo, or wet Moyo with a clean cloth dampened with 70% ethanol.
- Let it stay for a minimum of 10 minutes.
- Wipe Moyo with a clean cloth dampened with clean water, then let dry.
