Light weight pump (1.4kg) and reliable battery duration of 8hours on a 25 ml/h rate Therapy Profiles available : Dose Rate Calculation, DoseOver Time, Ramp and Taper Mode, Program Mode,Intermittent Mode, PCA, TCI, TIVA, KVO and Piggybackfunction Set and pump based Anti Free-Flow mechanism, protectingagainst free flow Drug Library with capacity to up to 1200 drug names, including therapy data, information and up to 10 concentrations per drug to be stored in 30 different categories. Drug information can be subdivided in 50 care units and up to 16 patient profiles.

Popular Keywords

Infusomat Space

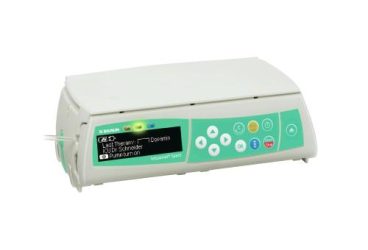

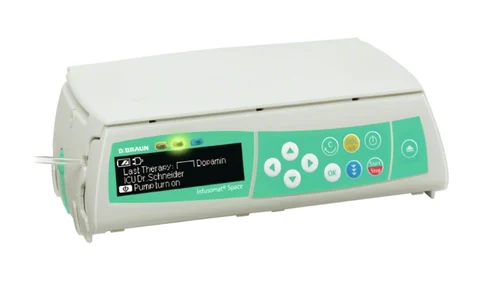

The Infusomat^®Space pump is the volumetric infusion pump solution to configure customized, tailor-made solutions as individual pumps, small therapy units, or a complex infusion system.The small, light and intuitive configuration of the pump provides a userfriendly solution to complex therapies, integrating all clinical areas into one system.The Infusomat^® Space volumetric infusion pump system includes dedicated administration sets and pump accessories.B. Braun Space can also be integrated into the data communications network of every advanced hospital operation.

Infusomat Space

Product Details

Features

Light weight pump (1.4kg) and reliable battery duration of 8hours on a 25 ml/h rate
Therapy Profiles available : Dose Rate Calculation, DoseOver Time, Ramp and Taper Mode, Program Mode,Intermittent Mode, PCA, TCI, TIVA, KVO and Piggybackfunction
Set and pump based Anti Free-Flow mechanism, protectingagainst free flow
Drug Library with capacity to up to 1200 drug names, including therapy data, information and up to 10 concentrations per drug to be stored in 30 different categories. Drug information can be subdivided in 50 care units and up to 16 patient profiles.

Technical Specifications

Type of Unit	Volumetric Infusion Pump
Dimensions	214 x 68 x 124 mm (WxHxD)
Weight	Approx. 1.4 kg
Moisture protection	IP 22, drip protected for horizontal usage
Display	Backlit graphic display, ~40° read angle from all sides
Keypad	Backlit keys , cell phone like cursor navigation
Flow Rates	0.1-1200 ml/h
Accuracy of set delivery rate	<< ±0,5 % mechanical accuracy ± 5 % according to IEC/EN 60601-2-24
Operating Temperature	+10° C … + 40° C +50° F …. +105° F
Voltage	11-16 V DC supplied by external Space Power Supply or by SpaceStation
Battery operating time	Minimal power consumption of the devices and new battery technology ensure long operating times, e.g. 9.4 hrs. @ 80 ml/h, 8.5 hrs. @ 100 ml/h
Lifetime	Min. 10 years under continuous duty conditions
