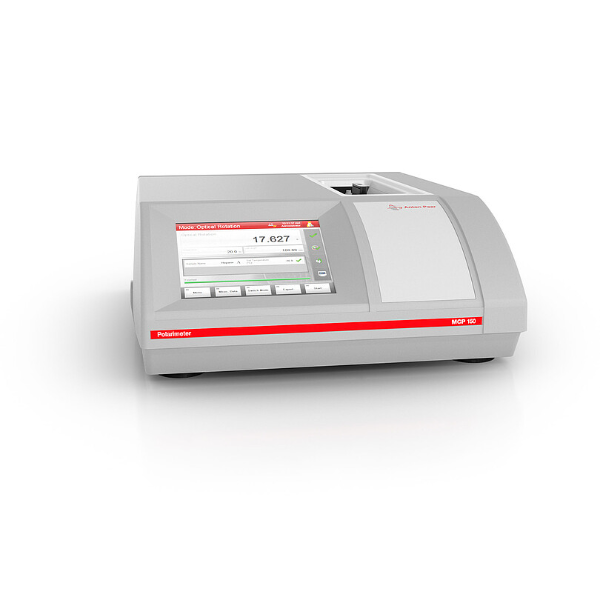

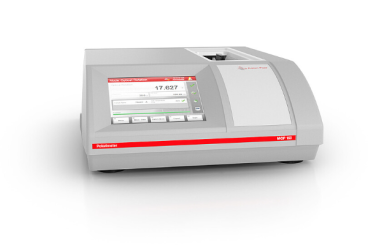

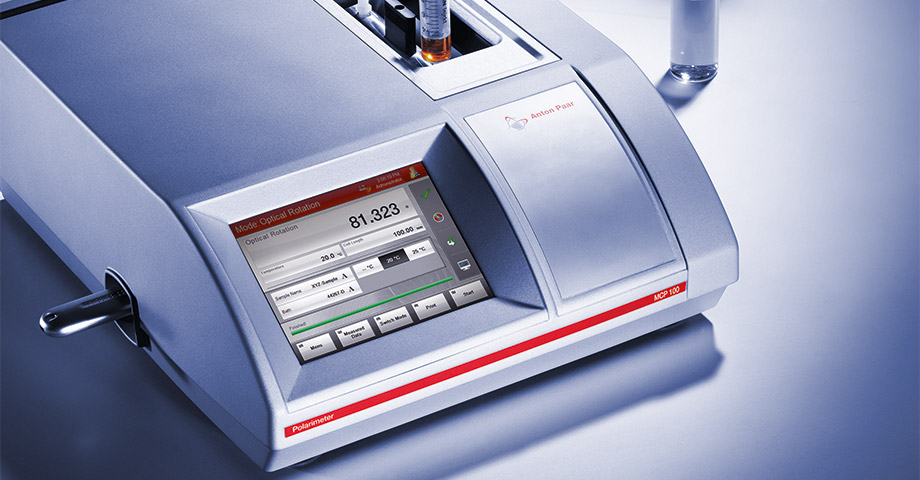

Modular Compact Polarimeter (MCP 100)

-Built-in Peltier temperature control (20 °C or 25 °C)

-Small footprint; saves space in the lab

-Wireless automatic identification of sample cells and quartz control plates via RFID

download

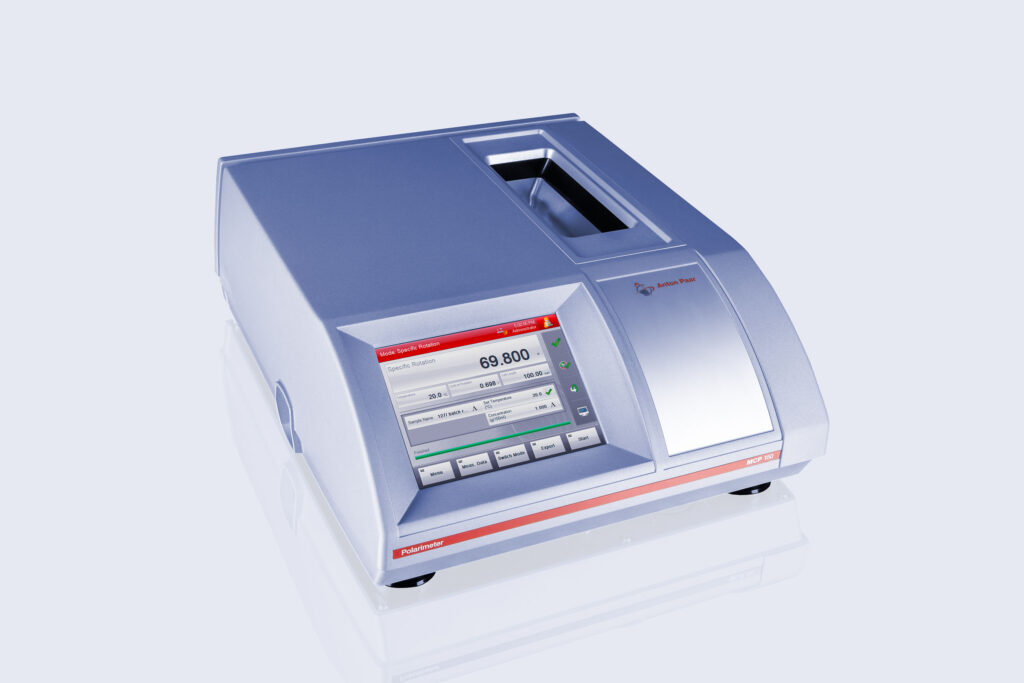

Modular Compact Polarimeter (MCP 100)

Product Details

Details

The MCP 100/150 polarimeters are the right choice for routine quality control and universities, especially for pharmaceutical applications (MCP 150) and the flavor and fragrance industry. MCP 150 offers 21 CFR Part 11 compliance. The easy-to-use touchscreen supports fast navigation with unparalleled simplicity, and the multiple measurement capabilities and customized methods provided by MCP 150 make both routine and more complex measurements extremely easy. The powerful Peltier temperature control guarantees fast and even temperature distribution. With the intelligent Toolmasterâ„¢ technology, the connected sample cell or quartz control plate is automatically detected wirelessly. This eliminates user errors and ensures that every change is recorded in the audit trail. LIMS and FTP connectivity are fully supported.

Features

Whenever lab bench space is limited, MCP 1X0 is the right choice

  • Small footprint (less than two notebook pages)
  • Lightweight instrument with enormous robustness

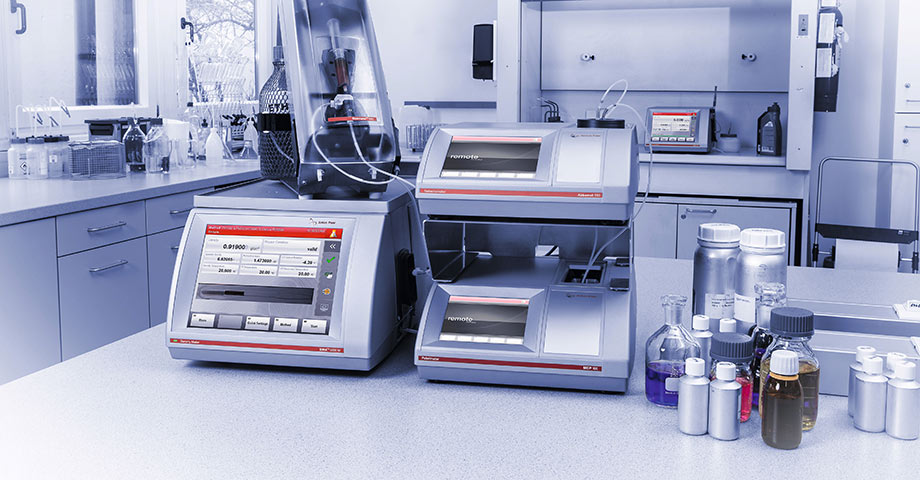

  • Ideal for multiparameter setup, e.g. combination with a refractometer or density meter

Designed for ultimate ease of use

  • Built-in Peltier temperature control
  • Wireless identification of quartz plates and sample cells
  • Temperature is wirelessly transferred from the sample cell to the instrument
  • Color touchscreen for easy navigation

Fulfills regulations for quality management and international compliance

  • Full compliance to 21 CFR Part 11 (MCP 150)
  • Compliance to national and international pharmacopeias
  • Outstanding feature set for your individual requirements
  • Password protection for maximum safety
  • User level management for easy access control
  • User group administration (MCP 150) for simplification of access rights and permissions
  • Audit trail for full traceability
  • Electronic signature for approval of measurement data (MCP 150)

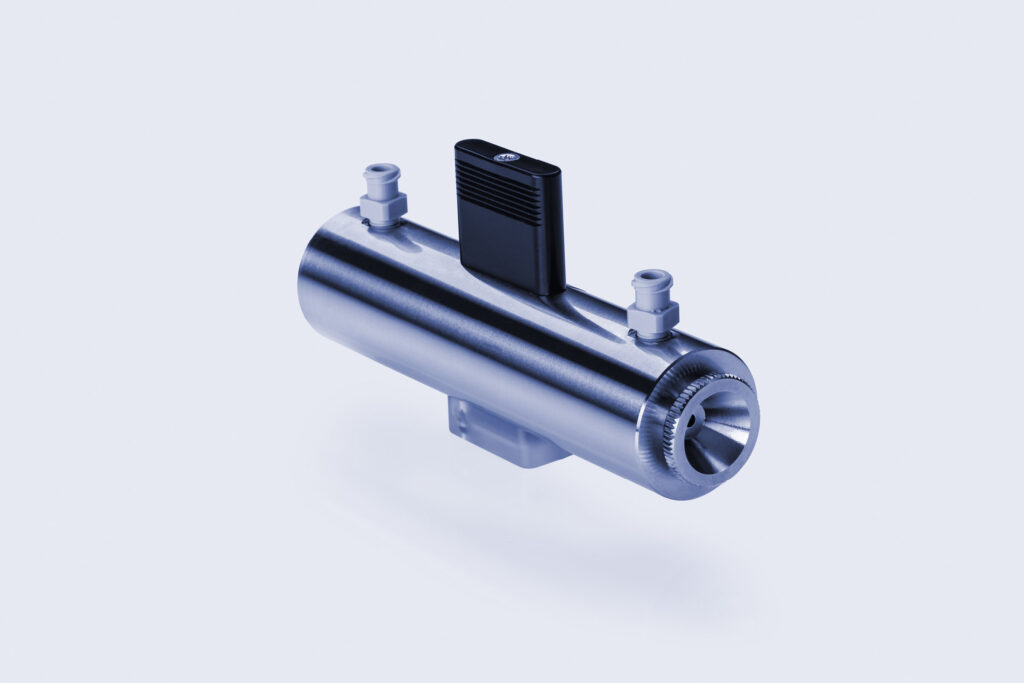

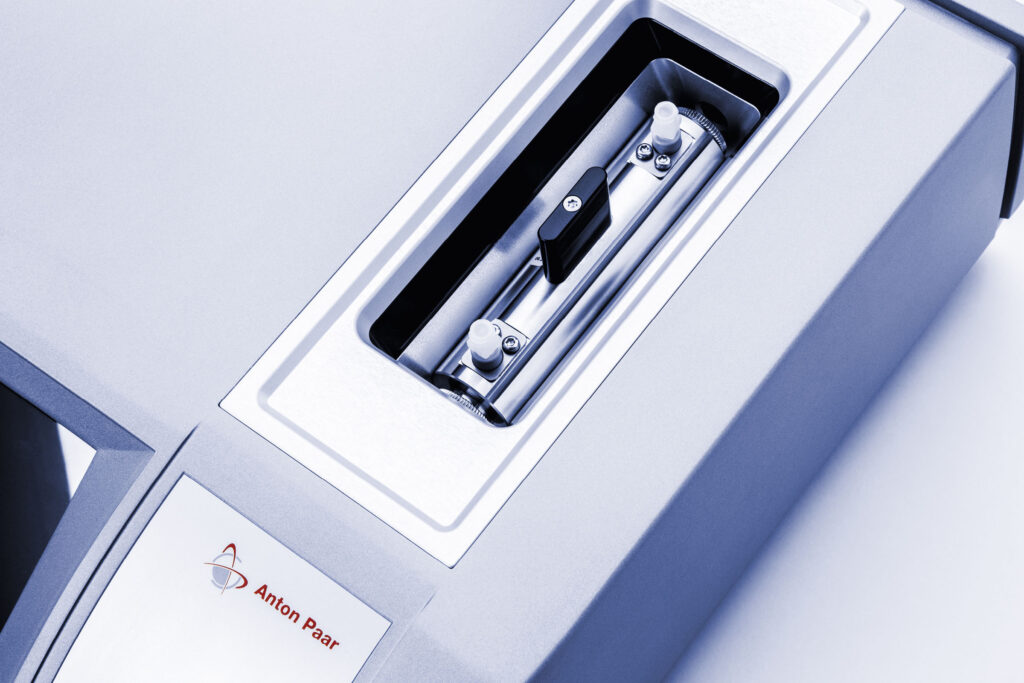

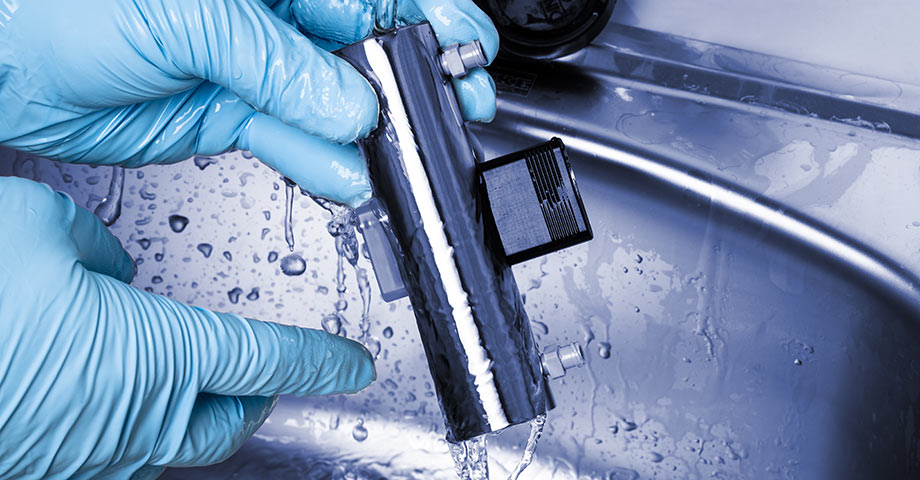

Wireless sample cells for seamless measuring procedures

  • Built-in temperature sensor with wireless data transfer to the instrument
  • Different stainless steel classes for high material resistance
  • Water-proof design combined with cables or connectors which makes it easy to clean
  • Cell length protocol for all relevant mechanical dimensions according to ICUMSA and OIML



Technical Specification




MCP 100
Measuring scales: °Optical Rotation, °Specific Rotation, %Concentration
Measuring range: ±89.9°
Resolution: 0.001°
Accuracy: ±0.01°
Repeatability: ±0.01°
Response time: 12 sec.
Wavelength: 589 nm
Light source: LED, with average lifetime of 100.000 hours
Sensitivity: A light intensity control compensates attenuation up to Optical Density (OD) 2.0
Temperature sensor: Built-in PT 100 sensor
Temperature resolution: 0.1 °C
Temperature accuracy: ±0.2 °C
Temperature control: Automatic Peltier temperature control at 20°C and 25°C, or without temp. control
Sample cell / quartz control plate: Toolmaster™ – Automatic sample cell and quartz control plate identification; sample cell path length of 2.5 mm to 100 mm
Display: TFT touchscreen 5.7″ (145 mm), 640 x 480 Pixels
Interfaces: 3 USB, RS232, Ethernet, CAN bus, easy connection of keyboard, mouse, printer, bar code. Network capability
Dimensions (LxWxH): 370 mm x 320 mm x 130 mm (14.6 in x 12.6 in x 5.1 in)
Weight: 7.8 kg (17.2 lbs)
Power supply / consumption: AC 100 to 240 VAC, 50/60Hz / 70VA, 120 VA max.
