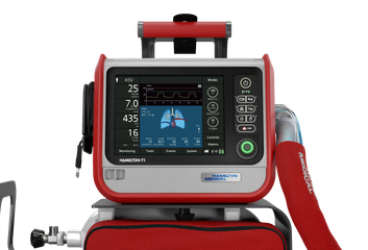

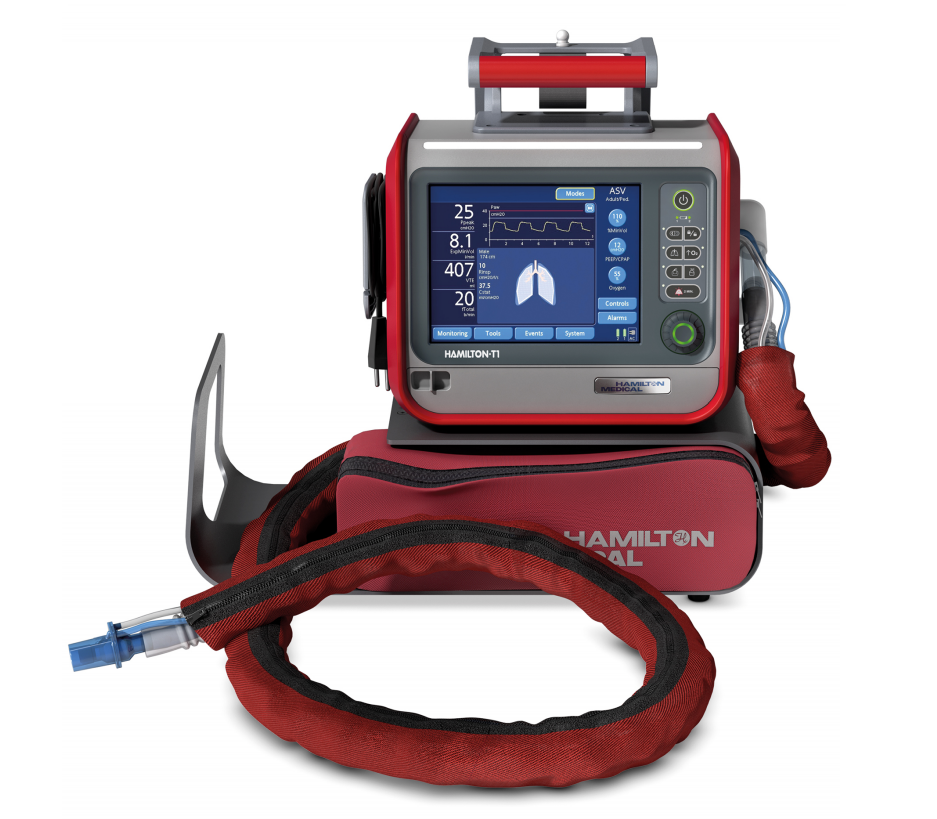

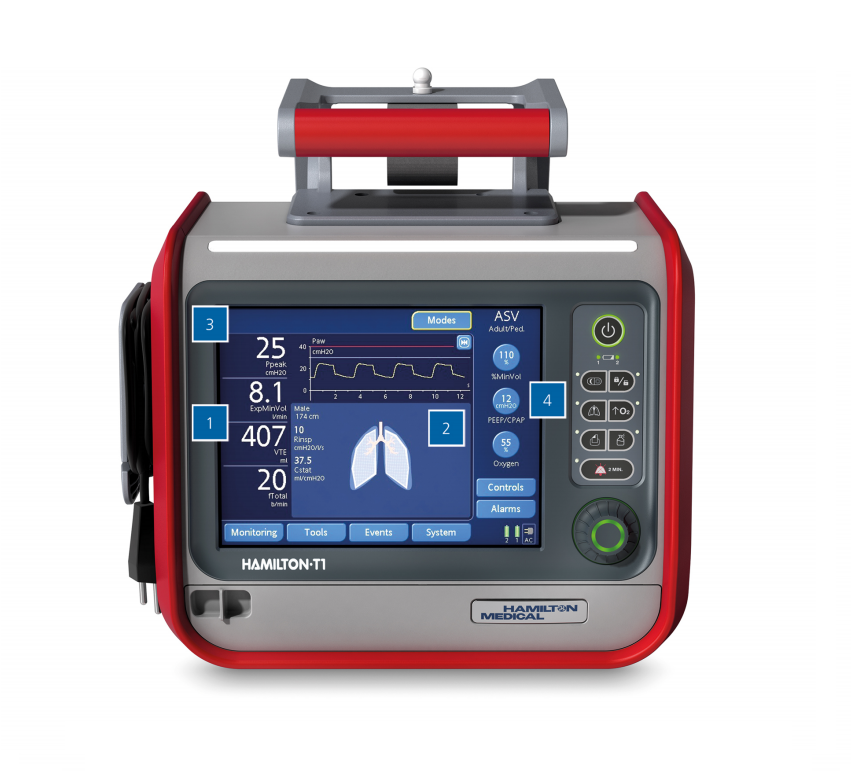

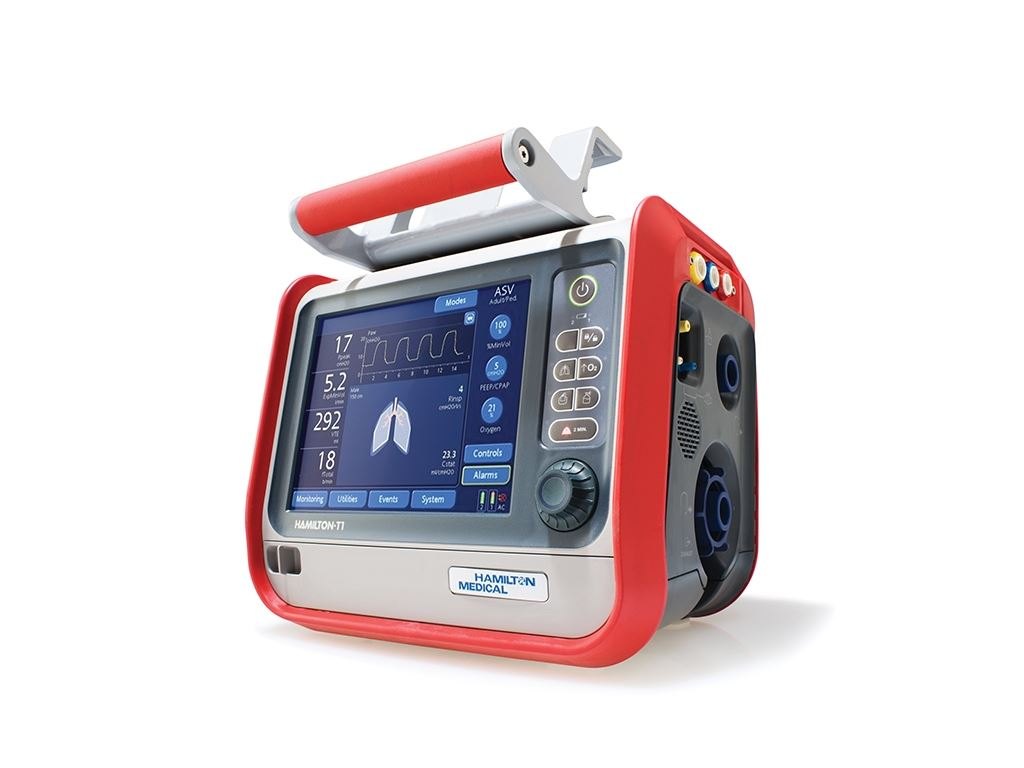

HAMILTON‑T1

The HAMILTON-T1 combines for the first time the functionality of a fully featured intensive care unit ventilator with the compactness and ruggedness required for transport. This is why the HAMILTON-T1 enables you to provide optimal ventilation therapy to all patient groups during transport, from the neonate to the adult. The integrated high-performance turbine enables the HAMILTON-T1 to be completely independent from compressed air. This reduces weight and saves space, and allows even noninvasively ventilated patients to be transported successfully across greater distances. The HAMILTON-T1 includes Hamilton Medical’s standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation

eyJwYXRoIjoiaGFtaWx0b24tbWVkaWNhbC1hZ1wvZmlsZVwvNFhLbnczMjFWRTM4MXU2dHEzOHYucG5nIn0_hamilton-medical-ag_4VcSNqkgTMXeDPMyHEL4dJsa4bJy46jK7jPG8JfrGVE

HAMILTON‑T1

Product Details

Features
  • HIgh Flow Oxygen Therapy
  • High Performance Non Invasive Ventilation
  • Hot Swappable battery backup
  • Oxygen adjustable from 21% to 100%
  • Integrated High Performance Turbine
  • ASV for lung-protective ventilation.
Technical Specifications
Patient groups Adult/Ped, Neonatal
Dimensions (W x D x H) 320 x 220 x 270 mm (ventilation unit)
630 x 630 x 1380 mm (without handle)
630 x 630 x 1433 mm (with handle)
Weight 6.5 kg (14.3 lb)
18.5 kg (40.8 lb) with trolley
Monitor size and resolution 8.4 in (214 mm) diagonal
640 x 480 pixels
Detachable monitor No
Battery operating time 4 h with one battery
8 h with two batteries
Hot‑swappable battery Yes
Air supply Integrated turbine
O2 connector DISS (CGA 1240) or NIST
Connectivity CO2/Nurse Call/COM1, CO2/SpO2/COM1, CO2/SpO2/Humidifier & COM1, USB port, RJ‑45 Ethernet port
Loudness 43 dB in normal operation
