NeoBeat

NeoBeat is a reusable and consumable-free heart rate meter. The hands-free device is easy-to-use and provides an accurate digital display of the newborn heart rate.

NeoBeat takes seconds to put on a newborn’s torso and presents the heart rate rapidly. With rapid detection of heart rate, clinicians may have a better understanding of the newborn, enabling a timely continuation of care.

Product contains lithium-ion battery.

NeoBeat

Product Details

Features

Dry electrodes to pick up an ECGbased signal, as recommended by ILCOR.
Mountable charging stand for quick and easy access to the device.

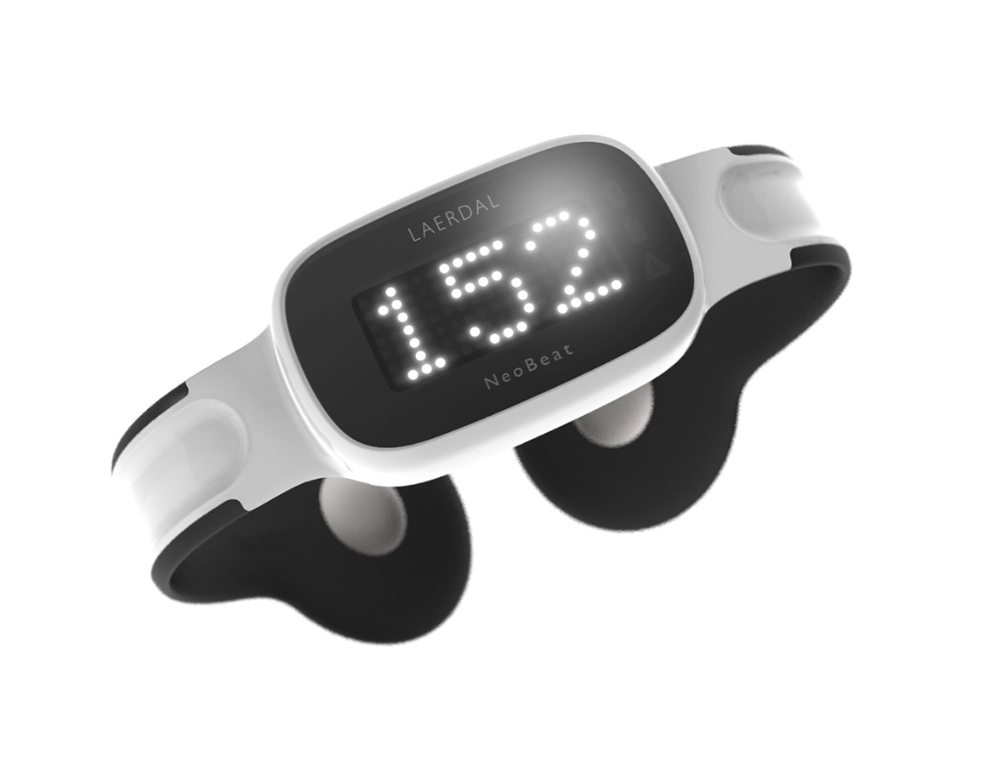

Bright, digital display that informs a single provider or a larger team on the newborn’s heart rate.

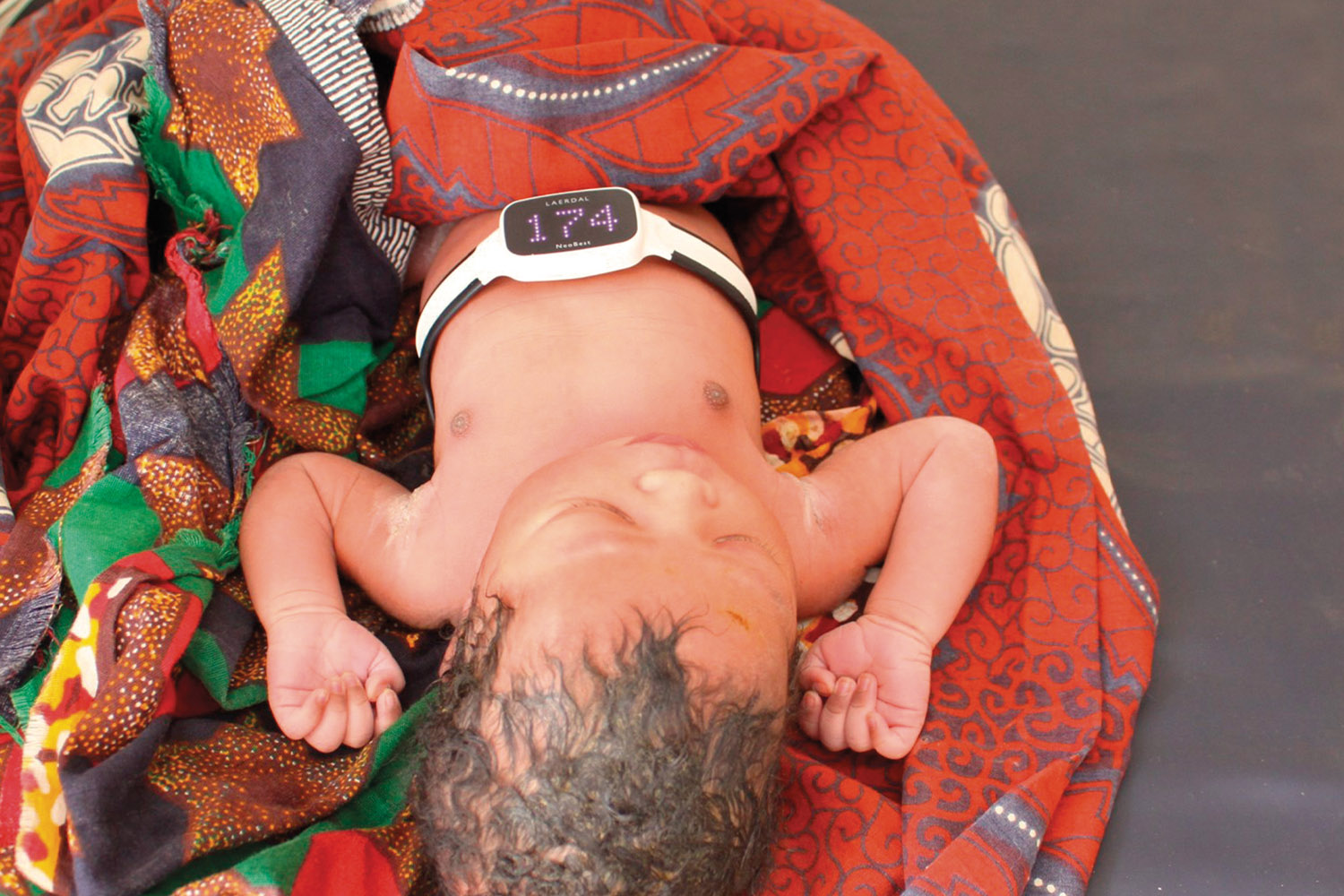

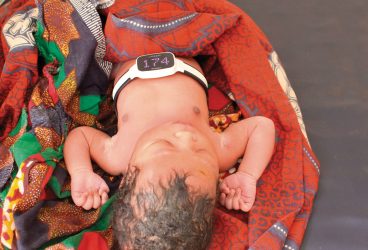

Can be placed on the back of the baby to obtain heart rate while enabling skin-to-skin.
Reusable and consumable-free.

Specifications

Product size (L x W x H) [cm]: 8,3 x 8,7 x 4,0
Product weight (kg): 0,031
Operating temperature [°C]: 0 to +40
Storage temperature [°C]: -40 to +70
Materials: Polyamide, TPU
Material Free: Latex, Lead
CE or Notified Body Number: CE2460
Product conformity with standards: IEC 60601-1, ISO 10993
Battery:
- Lithium battery energy content [Wh]: 0,44
- Lithium Battery Weight: 3.2g
- Are batteries required? Yes (rechargeable, embedded in product)
- Number of Lithium-ion cells? 1
- Storage requirement: Battery needs to be recharged every 6th month when product is not in use.
Reprocessing methods:
- Wipe all surfaces of NeoBeat with a clean cloth soaked with 70% ethanol. Spray 70% ethanol on all surfaces of NeoBeat. Ensure it remains wet for a minimum of 10 minutes.
- Repeat spraying as necessary to account for evaporation.
- Allow to air dry
