CX4000 Plus

CX4000Plus

Presenting the all new CX4000 Plus, a thoughtfully crafted variant designed for the challenging healthcare environments, keeping caregiver’s needs in mind!

It is packed with the full set of clinical positions like Height, Backrest, Trendelenburg, Reverse Trendelenburg, Knee Rest on individual smooth crank systems and a multi position DVT end platform, making it a perfect choice for critical care and high dependency areas. Armed with an elegantly designed and smoothly operated spilt type polymer molded safety side rails, it not only offers safety and hygiene but also brings treatment areas to life. The bed is engineered for trouble free service life with a tough frame design, strong support linkages and high grade synthetic castors.

CX4000 Plus

CX4000Plus

Product Details

Features

Raised backrest and upper leg

Height adjustment, Trendelenburg / Reverse Trendelenburg

DVT end platform / calf elevation

Four section metallic perforated top

Pre-treated and epoxy powder coated MS parts

125 mm high grade synthetic castors, two with brake and two without brake

Polymer moluded split type side rails (2 sets)

Polymer moluded head and foot boards (pair)

Buffers at 4 corners for safety

Provision for IV pole

Removable handle

Technical Specifications
Buffer to Buffer Dimension 2140 mm x 1020 mm (L x W)
Platform Dimension 2080 mm x 955 mm (L x W)
Mattress Platform 1890 mm x 860 mm (L x W)
Minimum Height (without mattress) 530mm, 21″
Maximum Height (without mattress) 770mm, 30″
Backrest 0° – 70°
Kneerest 0° – 45°
Trendelenburg 0° – 8°
Reverse Trendelenburg 0° – 8°
Safe Working Load 150 Kgs
Patient Weight Bearing Capacity 110 Kgs

Related Products

Dimensions (WxDxH) 44.3 cm x 63.5 cm x 47.0 cm Ion Source ESIMultiMode (ESI+APCI)APCIAJS Mass Range m/z 2-3000 Minimum SIM Dwell Time 5 ms Polarity Switch Speed < 30 ms Scan Speed 10400 Da/s Software Platform OpenLab CDSOpenLab Chemstation Supported Software Add-Ons MassHunter WalkUpMassWorks Software

LC/MSD XT

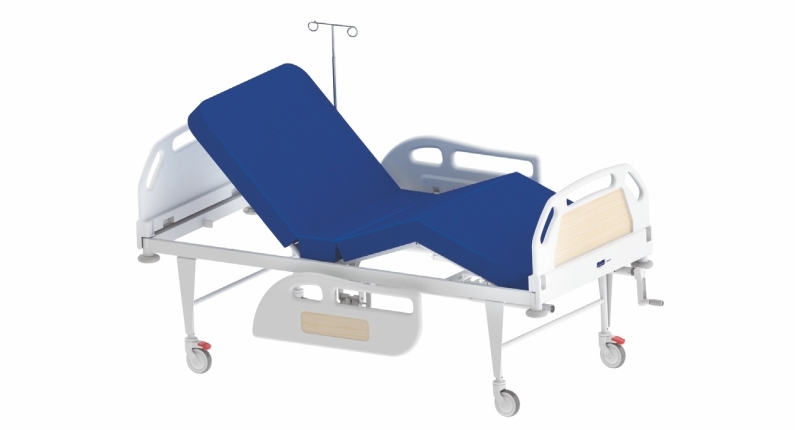

BX1000 Plus
