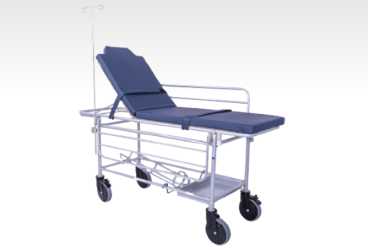

1702A STRETCHER ON TROLLEY

The 1702A Stretcher on Trolley is designed for superior patient transport with a focus on safety and ease of use. Equipped with a resilient stretcher platform, smooth-rolling wheels, and reliable locking features, this trolley ensures seamless and secure patient mobility. Its ergonomic design and sturdy build make the 1702A an invaluable tool for hospitals, emergency services, and clinics, providing efficient and comfortable patient transfers in critical situations.

1702A STRETCHER ON TROLLEY

Product Details

Features

Mild steel tubular framework mounted on four swivel castors, 200 mm (8”) diameter two with brakes & two without brakes

Removable stretcher top in two section made of pre-laminated board supported on tubular frame

Backrest on ratchet

Supplied with safety belts

Fitted with swing away type mild steel epoxy powder coated side rails

Oxygen cylinder cage & M.S. storage tray

Stainless steel IV Pole with provision on diagonal sides

Pre-treated and powder coated finish

Supplied in KDC

Technical Specifications

Overall approximate dimension: 1845 mm x 560 mm x 845 mm,
72″x 22″x 33″ (L x W x
Mattress platform dimension : 1790 mm x 555 mm, 70″ x 22″ (L x W)*
Mild steel tubular framework mounted on four swivel castors,
200 mm (8″) diameter two with brake and two without brake
Removable stretcher top in two section made of pre-laminated
board supported on tubular frame
Backrest on ratchet
Supplied with safety belts
Fitted with swing away type mild steel epoxy powder coated
side rails 630 mm (635 mm with locking flat)
Oxygen cylinder cage & MS storage tray
Stainless steel IV poles with the provisions on diagonal sides
Pre-treated and powder coated finish
Supplied in KDC
Safe working load of 135 Kgs and patient weight bearing
capacity of 105 Kgs
