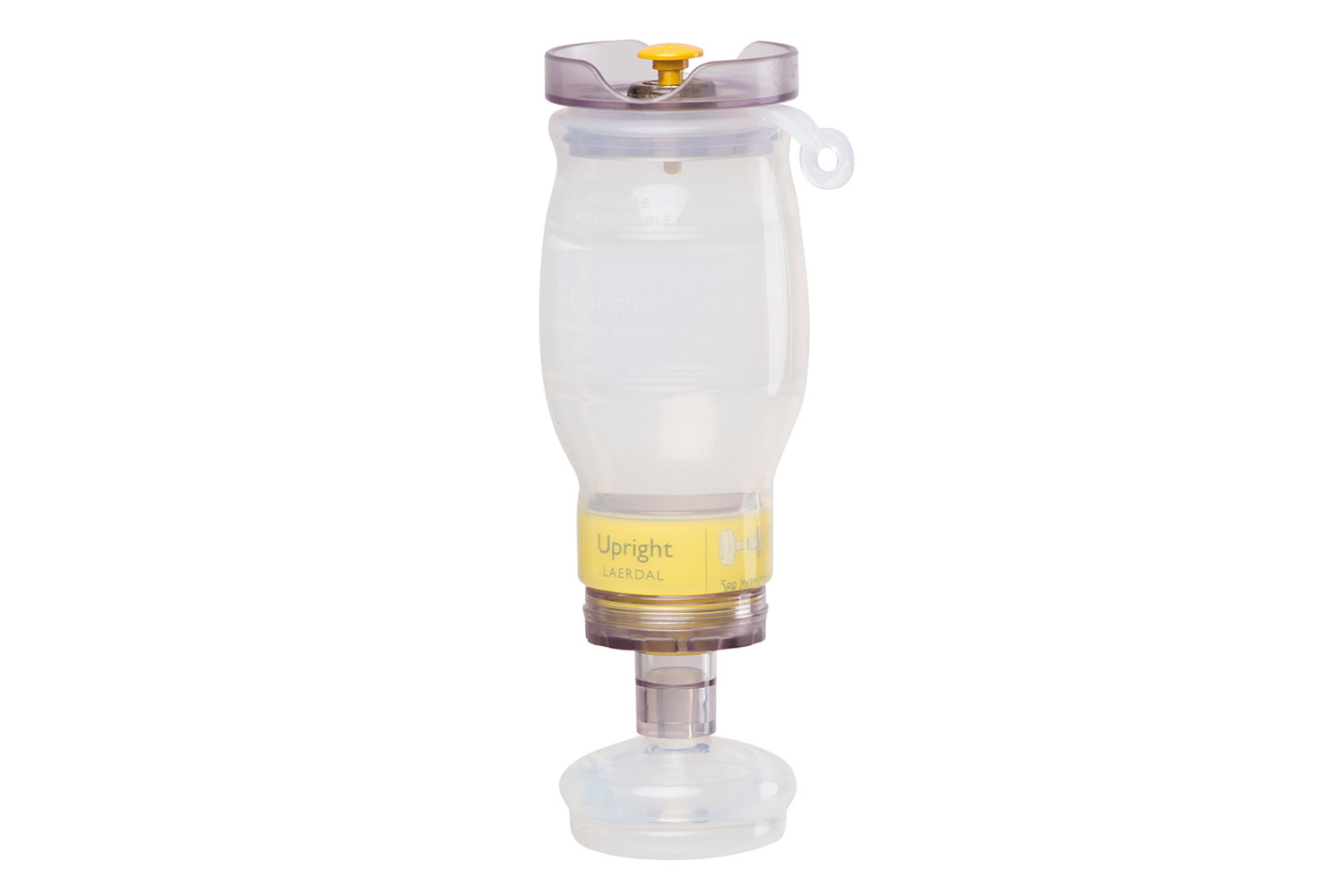

Upright Bag Mask

A self-inflating, manual and reusable newborn bag-mask with a new ergonomic design for improved effect on newborns and infants who require ventilation.  Also available with positive end-expiratory pressure (PEEP) for better effect on premature babies.

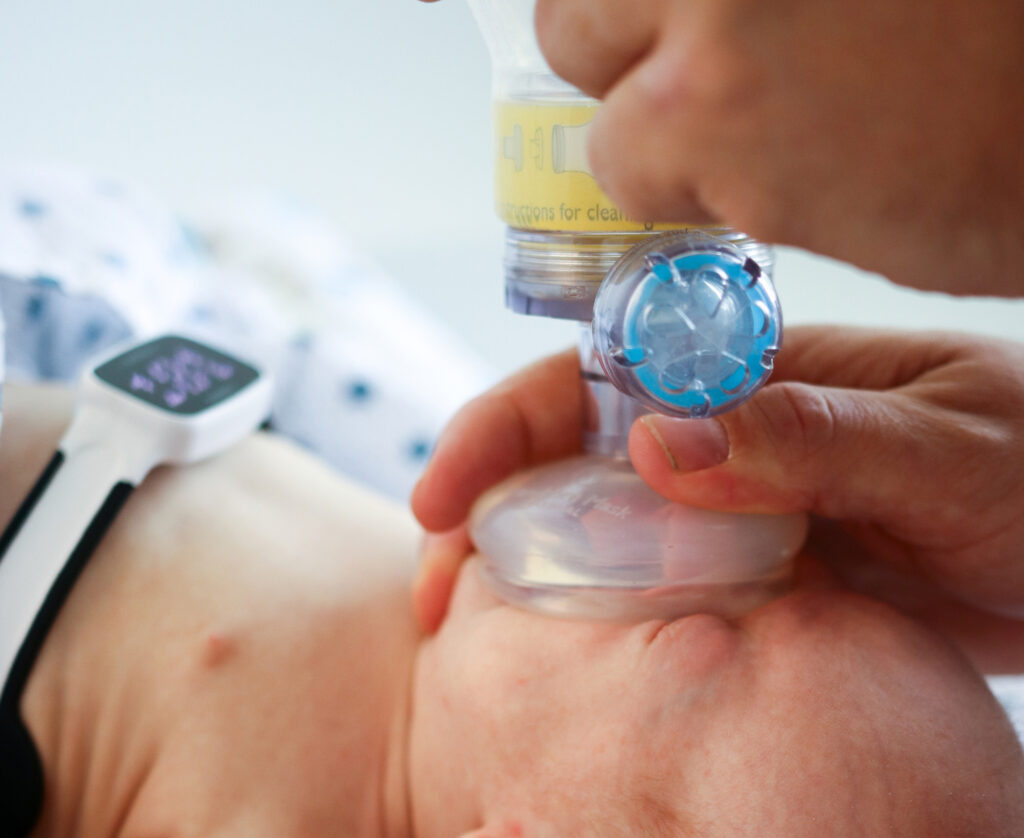

Upright with PEEP - This is the first low-cost reusable PEEP valve on the market, specially designed for use on small babies.

The reusable oxygen kit is an accessory to the Upright that enables the Upright to provide supplemental oxygen.

Mask

Upright Bag Mask

Product Details

Features
  • Redesigned Laerdal Newborn Mask with a stiffer and broader top helps support a better seal during ventilation
  • Easier to disassemble and reassemble correctly for cleaning and disinfection, with fewer parts compared to other resuscitators.
  • The volume of the bag has been increased to 320 ml to help compensate for mask leakage.
  • Can stand upright or hang from an integrated strap, to help reduce the risk of soiling of the product before use.
  • Can be high-level disinfected in low-resource settings, by boiling in clean water, autoclaving or with glutaraldehyde.
  • A highly visible label around the neck coupling is a reminder of how the parts are reassembled after cleaning.
  • Includes a pictorial poster that shows assembly, disassembly, and reprocessing.
  • An oxygen kit is available as an optional accessory.
Specifications
  • Product size  (L x W x H) [cm]: 73.5×9.3×21.8
  • Product weight (kg): 0,1892
  • Operating temperature [°C]: -18 °C to 50 °C
  • Storage temperature [°C]: -40 °C to 60 °C
  • Materials: Silicone rubber (SI), Polysulphone (PSU), Stainless steel, Polyvinyl Chloride (PVC), Polycarbonate (PC)
  • Material Free: Latex, Phthalates
  • Internal bag volume: 330 ml
  • Tidal volume: >150 ml
  • Pressure-limiting valve: 30-45 cmH2O
  • Dead space: 4 ml (water volume)
  • Expiratory resistance: < 2.5 cmH2O
  • Inspiratory resistance: < 0.5 cmH2O
  • Patient connector: 15 mm ID, 22 mm OD
  • CE or Notified Body Number: CE2460
  • Product conformity with standards: ISO 10993, ISO 10651-4, ISO 5356-1



Reprocessing methods:

  • Cleaning with soap and water
  • Boiling 10-20 minutes
  • Chemical – Act. Glutaraldehyde
  • Autoclaving
Includes
  • User Guide poster
  • Mask size 0
  • Mask size 1
