By Brand > Hamilton Medical > HAMILTON‑MR1

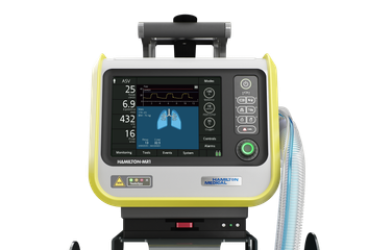

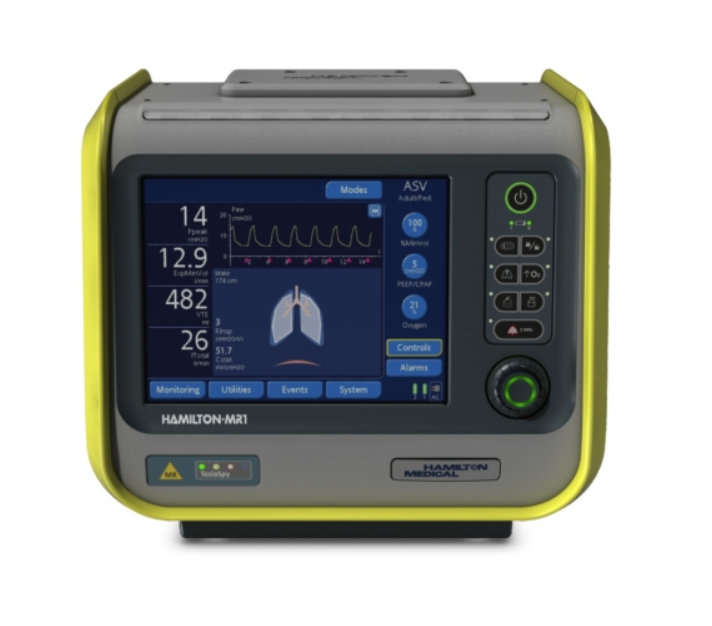

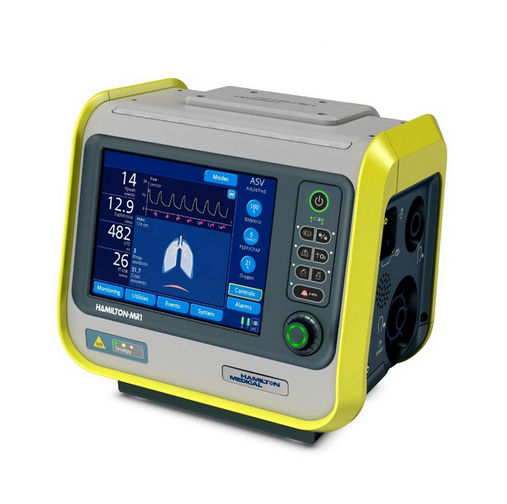

HAMILTON‑MR1

The fully featured ICU ventilator, Hamilton-MR1, guarantees uncompromised continuous ventilation care from the ICU to the MRI scanner and back. Its reliability and high performance, with advanced lung-protective strategies and patient-adaptive modes, make the Hamilton-MR1 the ideal choice for any critical care department that needs to transport ventilated patients to the MRI department. The integrated high-performance turbine enables the Hamilton-MR1 to be completely independent from compressed air. This reduces weight and saves space during intrahospital transport. The Hamilton-MR1 includes Hamilton Medical’s standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation.

eyJwYXRoIjoiaGFtaWx0b24tbWVkaWNhbC1hZ1wvZmlsZVwvSnFERzJGWVFVOG1UamV0OGpqUFAucG5nIn0_hamilton-medical-ag_QmVFh5VuOyR1Mzn6VuvLTY0dgRQl70NA-0rE9hvLWKM

HAMILTON‑MR1

Product Details

Features
  • Reliability and high performance
  • Advanced lung-protective strategies
  • Integrated high-performance turbine
  • Light weight and compact design
Technical Specifications
Patient groups Adult/Ped, Neonatal
Dimensions (W x D x H) 320 x 220 x 270 mm (ventilation unit)

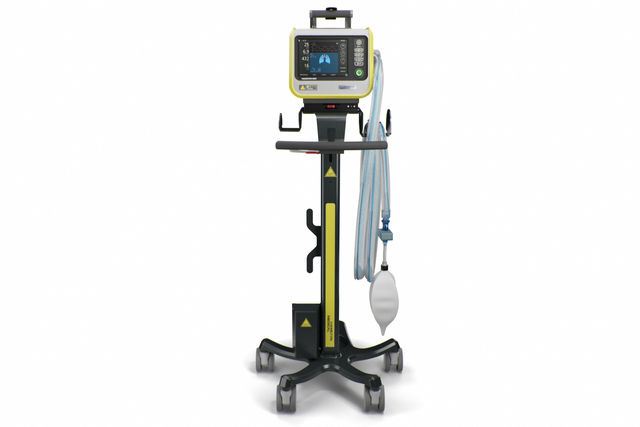

630 x 630 x 1400 mm (incl. trolley)
Weight 6.8 kg (15 lb)
21 kg (46.2 lb) with trolley
Monitor size and resolution 8.4 in (214 mm) diagonal
640 x 480 pixels
Detachable monitor No
Battery operating time 8 h with two batteries
Hot‑swappable battery No
Air supply Integrated turbine
O2 connector DISS (CGA 1240) or NIST
Connectivity USB port
Loudness 42 dB in normal operation
