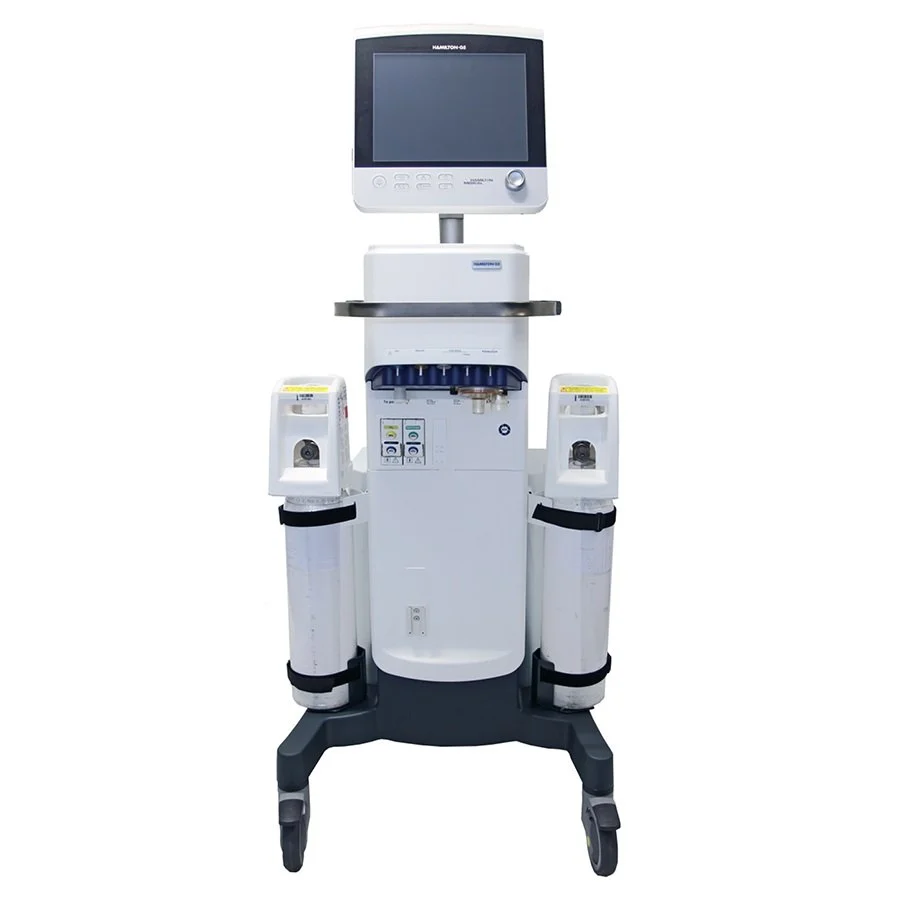

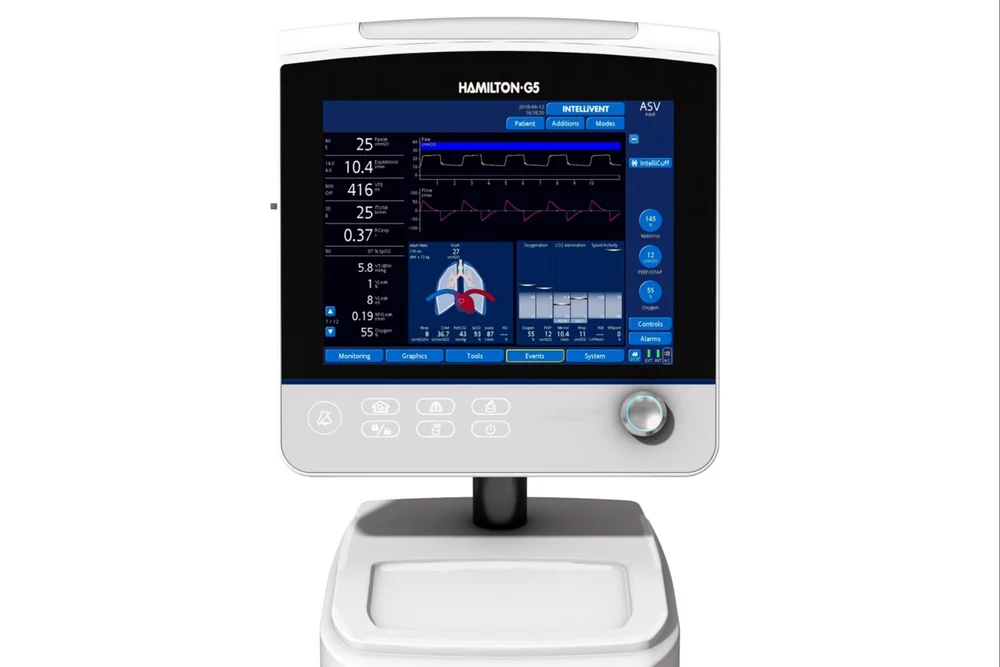

HAMILTON‑G5/S1

The HAMILTON-G5 was designed for the most complex, critically ill patients in all ICU settings where lung protection is of paramount importance. The comprehensive monitoring package and state-of-the-art diagnostic tools for lung assessment support you in making the best possible clinical decisions for your patient. A wide range of additional options and features, such as Heliox and high flow oxygen therapy, allows you to tailor the HAMILTON-G5 to fit the requirements of your ICU and meet the needs of each individual patient.

eyJwYXRoIjoiaGFtaWx0b24tbWVkaWNhbC1hZ1wvZmlsZVwvaUtGTGRGWU5KMk5rQVNBeFMyQW0ucG5nIn0_hamilton-medical-ag_T2F9YIkMQRIDyEPuBFrUDkSz7lxatpfuN9fwRhLknKE

HAMILTON‑G5/S1

Product Details

Features
  • HIgh Flow Oxygen Therapy
  • Non Invasive Ventilation
  • P/V Tool Pro for lung assessment and recruitment
  • Transpulmonary pressure measurement
  • Integrated Humidifier Control
  • Automated ventilation with INTELLiVENT-ASV
Technical Specifications
Patient groups Adult/Ped, Neonatal
Dimensions (W x D x H) 500 x 450 x 440 mm (ventilation unit)
580 x 600 x 1300 mm (min. monitor mounted on rail)
580 x 600 x 1500 mm (max. monitor mounted on rail)
Weight Ventilation unit, monitor, and shelf mount: 38 kg (83.8 lb)
57 kg (125.6 lb) with standard trolley, monitor, and ventilation unit
Monitor size and resolution 15 in (381 mm) diagonal
1024 x 768 pixels
Detachable monitor Yes
Battery operating time 1 h with one battery
Hot‑swappable battery No
Air supply Requires compressed air
O2 connector DISS (CGA 1240) or NIST (optional), NF (optional)
Connectivity CompactFlash, USB, DVI, COM (RS‑232), Special interface
Loudness 38.6 dB in normal operation
