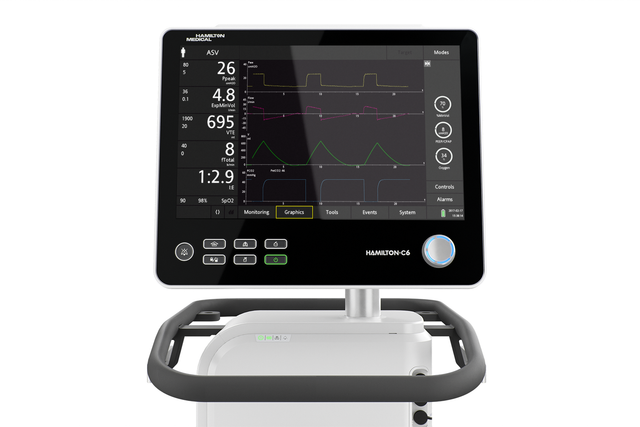

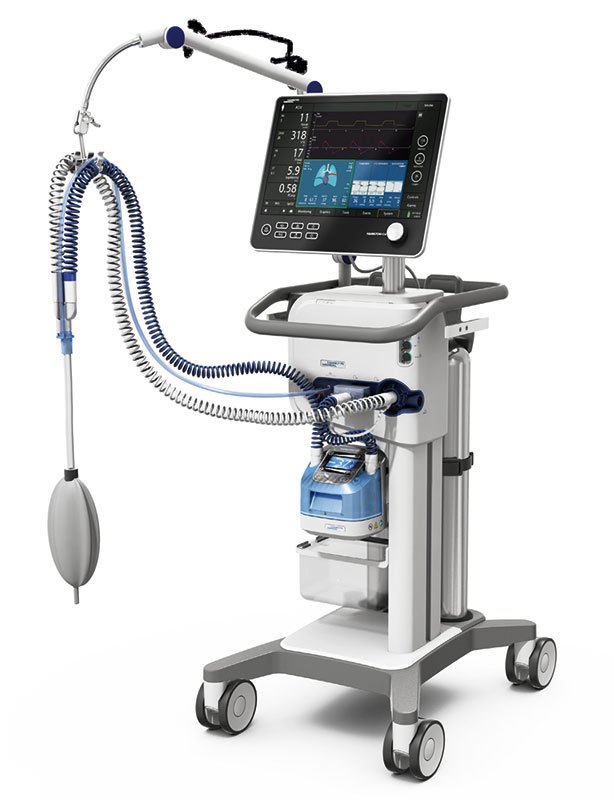

HAMILTON‑C6

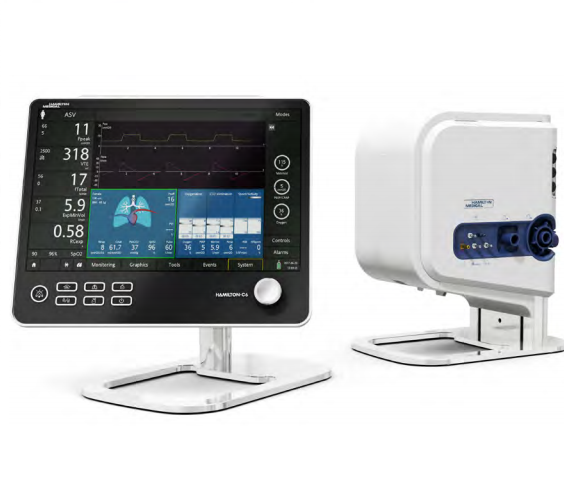

The HAMILTON-C6 Ventilator represents a new generation of high-end ventilators. The combination of modularity, ease of use, mobility, and advanced features allows you to personalize your patient’s ventilation therapy.

Thanks to the slimline frame, an integrated O2 cylinder carrier, and the high-performance turbine, the HAMILTON-C6 can stay at your patient’s side for intrahospital transports.

HAMILTON‑C6

Product Details

Features

Independent air supply
Real-time synchronization with IntelliSync+
P/V Tool Pro for lung assessment and recruitment
Transpulmonary pressure measurement
Integrated automatic cuff pressure controller
HIgh Flow Oxygen Therapy

Technical Specifications

Patient groups	Adult/Ped, Neonatal
Dimensions (W x D x H)	423 x 250 x 415 mm (monitor) 360 x 250 x 394 mm (ventilation unit) 640 x 560 x 1400 mm (incl. trolley)
Weight	Monitor (interaction panel) without shelf mount: 7.8 kg (17.2 lb) Monitor with shelf mount: 10 kg (22 lb) Ventilation unit with shelf mount: 10.5 kg (23.2 lb) Ventilation unit, monitor, and trolley: 46 kg (101 lb)

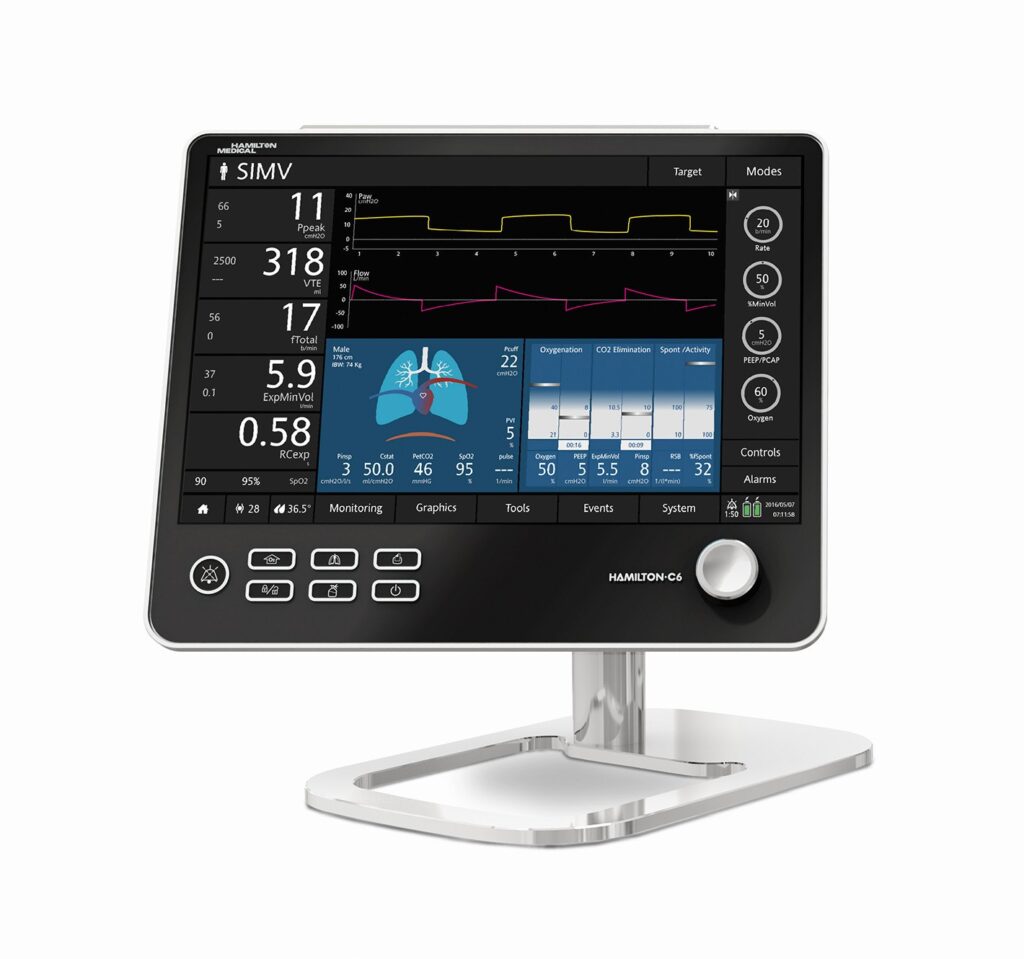

Monitor size and resolution	17 in (431.8 mm) diagonal 1920 x 1200 pixels
Detachable monitor	Yes
Battery operating time	1.5 h with one battery 3 h with two batteries
Hot‑swappable battery	No
Air supply	Integrated turbine with lifetime warranty
O2 connector	DISS (CGA 1240) or NIST
Connectivity	Three COM ports, two USB ports, DVI, Nurse call
Loudness	37 dB in normal operatio
