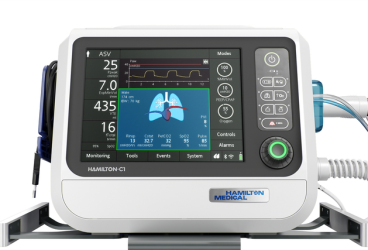

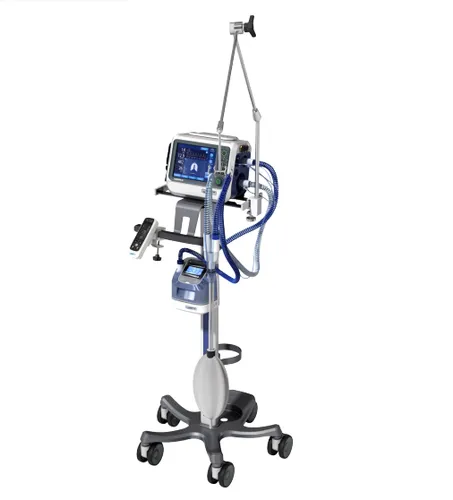

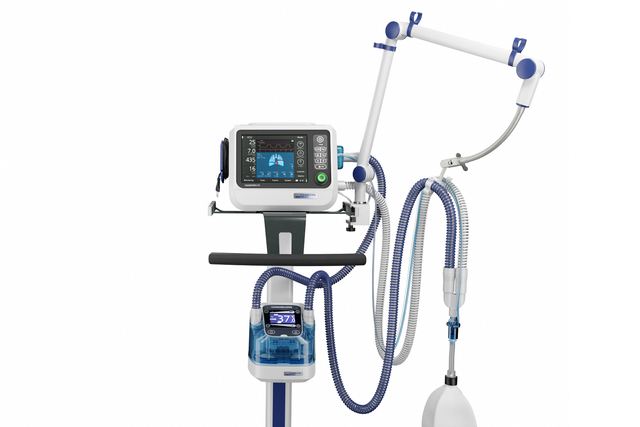

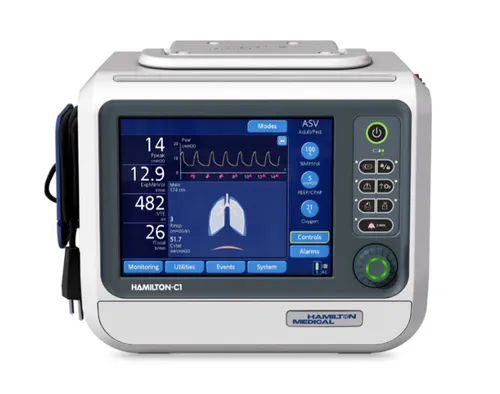

HAMILTON‑C1

The HAMILTON-C1 is unique in providing outstanding non-invasive performance in a full featured intensive care ventilator. Due to its very compact design, it offers maximum flexibility in various user environments, be it long term care, intensive care, emergency, or respiratory care. HAMILTON-C1 ventilator’s compact, powerful design also increases the availability of appropriate modes of therapy for ventilated hospital patients. Small enough to fit into almost any ICU environment and competitively priced, they cover the full range of clinical requirements: invasive ventilation, automated ventilation with Adaptive Support Ventilation (ASV), and Non-Invasive Ventilation (NIV).

eyJwYXRoIjoiaGFtaWx0b24tbWVkaWNhbC1hZ1wvZmlsZVwvWm9TamY1WnY4aWV0dVF6UmVraHkucG5nIn0_hamilton-medical-ag_OLfz84eiXIt0RxunCm5LMl875VbheYJNBbPctbokANo

HAMILTON‑C1

Product Details

Features
  • Tidal Volume range 20 ml -2000 ml
  • Ventilator is capable to work from 3kg to 200 kg patient Adult & Pediatric. It can be upgrade to Neonatal from 200gms with tidal volume of 2ml to 300ml
  • Ventilator weight is less than 5 kg
  • 8.4-inch TFT color touch screen Display, backlight
  • Work on high pressure & low-pressure Oxygen supply.
  • Ventilator has Optional inbuilt Main stream ETCO2 and SPO2 Monitoring.
  • Ventilator has more than 4-hour’s battery backup.
  • Ventilator has Accurate / Precise measurement of patient data through proximal flow sensor technology.
  • Integrated ultra-quite turbine for air delivery with Peak flow of 260 LPM.
  • Able to Visualize 24 Parameters in Single Screen.
  • In-built Pneumatic Nebulizer with medication set
  • Apnea backup ventilation- Bi-directional
  • IntelliTrig: Automatic response to varying leaks
  • IntelliSync: Guaranteed rate ventilation
  • Hamilton Connect App
  • CPR Ventilation
Technical Specifications
Patient groups Adult/Ped, Neonatal
Dimensions (W x D x H) 310 x 210 x 245 mm (ventilation unit)
630 x 630 x 1380 mm (incl. trolley)
Weight 4.9 kg (10.8 lb)
16.9 kg (37.3 lb) with trolley
Monitor size and resolution 8.4 in (214 mm) diagonal
640 x 480 pixels
Detachable monitor
Battery operating time 4 h with one battery
Hot‑swappable battery
Air supply Integrated turbine
O2 connector DISS (CGA 1240) or NIST
Connectivity CO2/Nurse Call/COM1, CO2/SpO2/COM1, CO2/SpO2/Humidifier & COM1, USB port, RJ‑45 Ethernet port
Loudness 43 dB in normal operation
