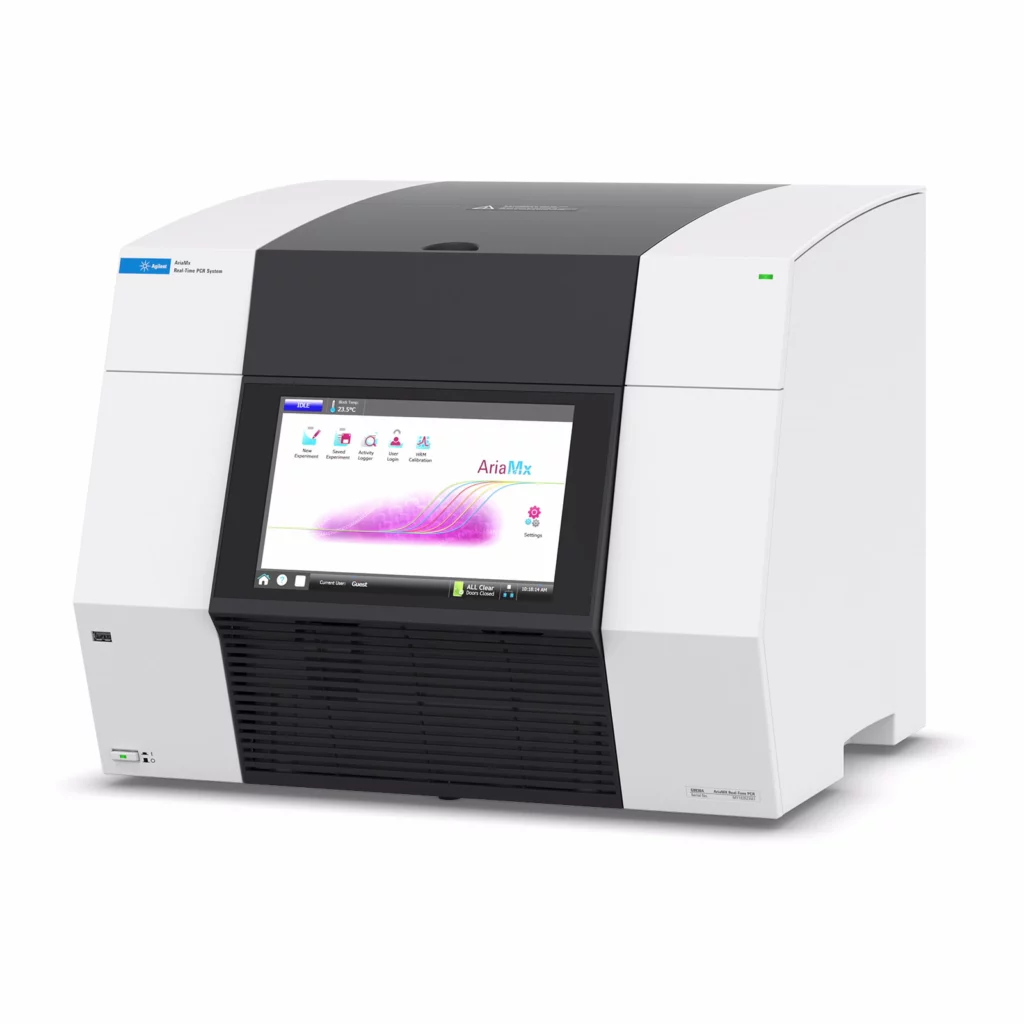

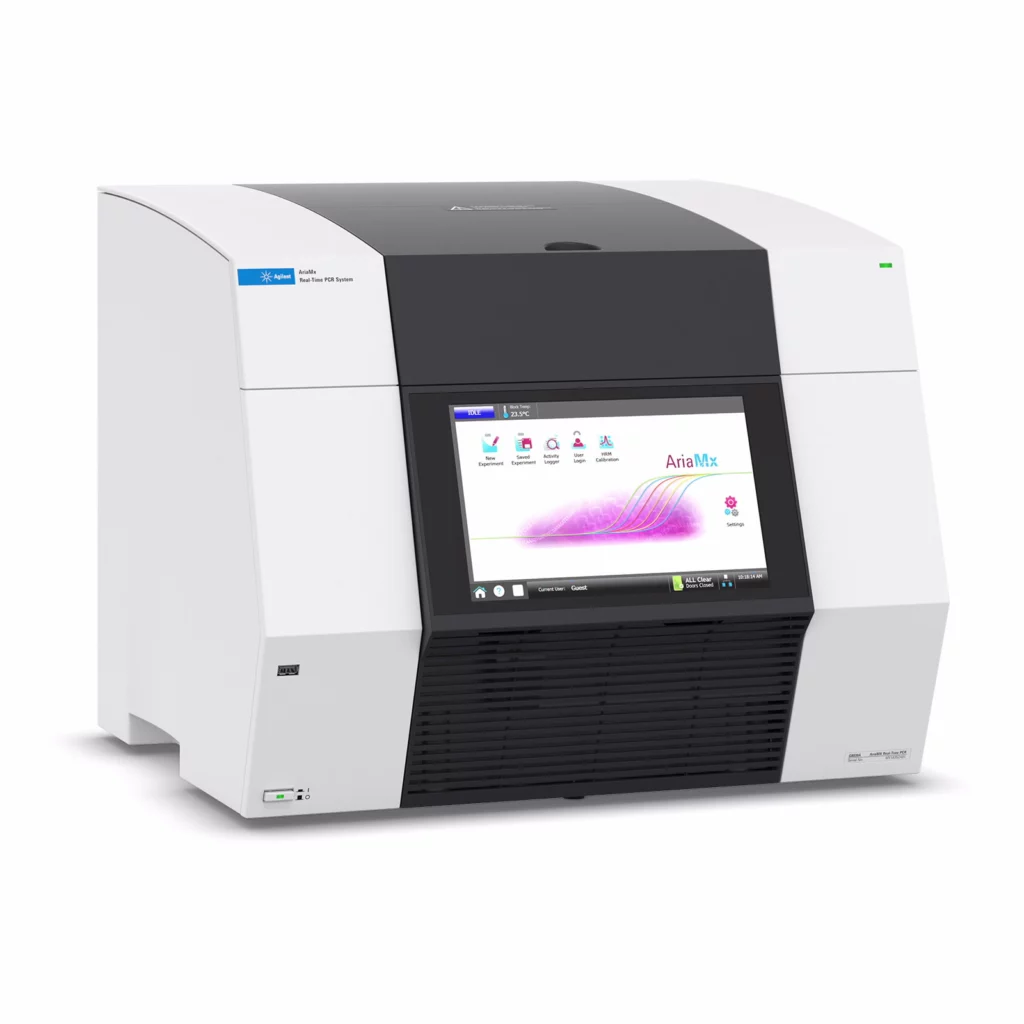

AriaMx Real-time PCR System

The AriaMx Real-Time PCR system is a fully integrated qPCR solution for amplification, detection, and data analysis, combining a novel thermal cycler, an advanced optical system with LED excitation source, and comprehensive data analysis software.

AriaMx has a closed-tube PCR detection format and can be used with many fluorescence detection chemistries, including SYBR Green and EvaGreen dyes, and fluorogenic probe systems such as TaqMan. Functional reporting, more than 120 attributes, and built-in diagnostics assist in troubleshooting. A modular and flexible design with intuitive touch-screen interface improves productivity.

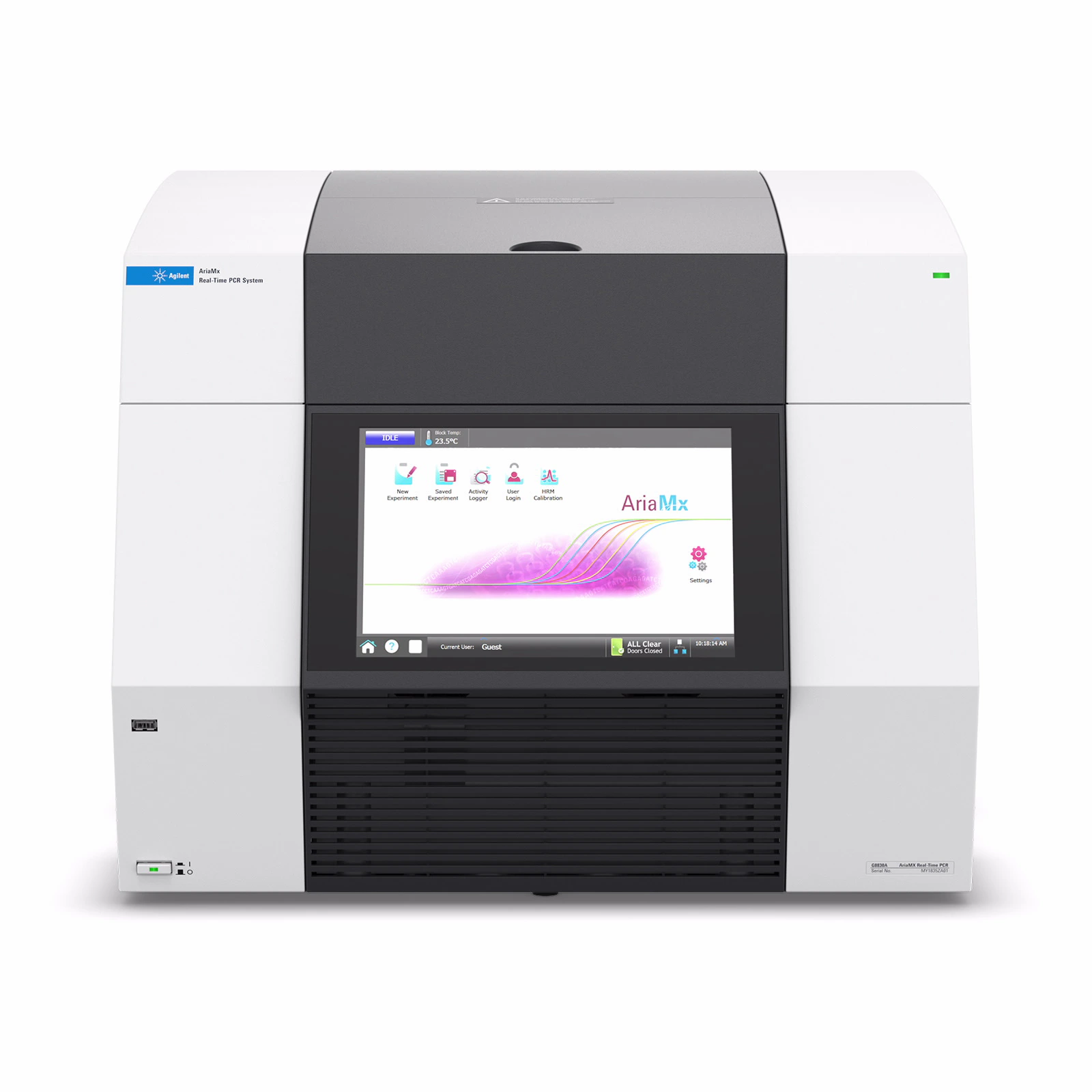

AriaMx Real-time PCR System

Product Details

Features

Usable with many fluorescence detection chemistries, including SYBR Green and EvaGreen dyes, and fluorogenic probe systems such as TaqMan
Combines a novel thermal cycler, an advanced optical system with LED excitation source, and comprehensive data analysis software
Ultrafast chemistry helps you to complete your study in a timely fashion
Proprietary rapid hot-start enzymes and fastest industry high-resolution melt reagents
Intuitive operation with a touch screen interface
Modular optics and open reagent platform for increased agility
Multiplex capability with six filters for five plexing and two to five channels
Validated for most applications and chemistries
Intuitive open-source software and robust data analysis with proprietary algorithms
Instrument validated on 100,000+ samples across 14 different assays

Specifications

ARIA Software – Standard with Instrument	Yes
Accuracy	±0.2 °C
Controller Touchscreen	Yes
Data Acquisition Time	<3 sec
Detection Sources	8 filtered photodiodes
Dimensions (WxDxH)	50.0 x 46.0 x 42.0 cm (19.7 x 18.1 x 16.5 inches)
Dynamic Range	9
Excitation Source	8 dye specific LEDs per optical module
Max Optical Modules	6
Maximum Block Ramp Rate	6 °C/Sec
Number of Peltiers	6
Number of Wells	96
Number of wells for multiplexing	Up to 5 targets per well

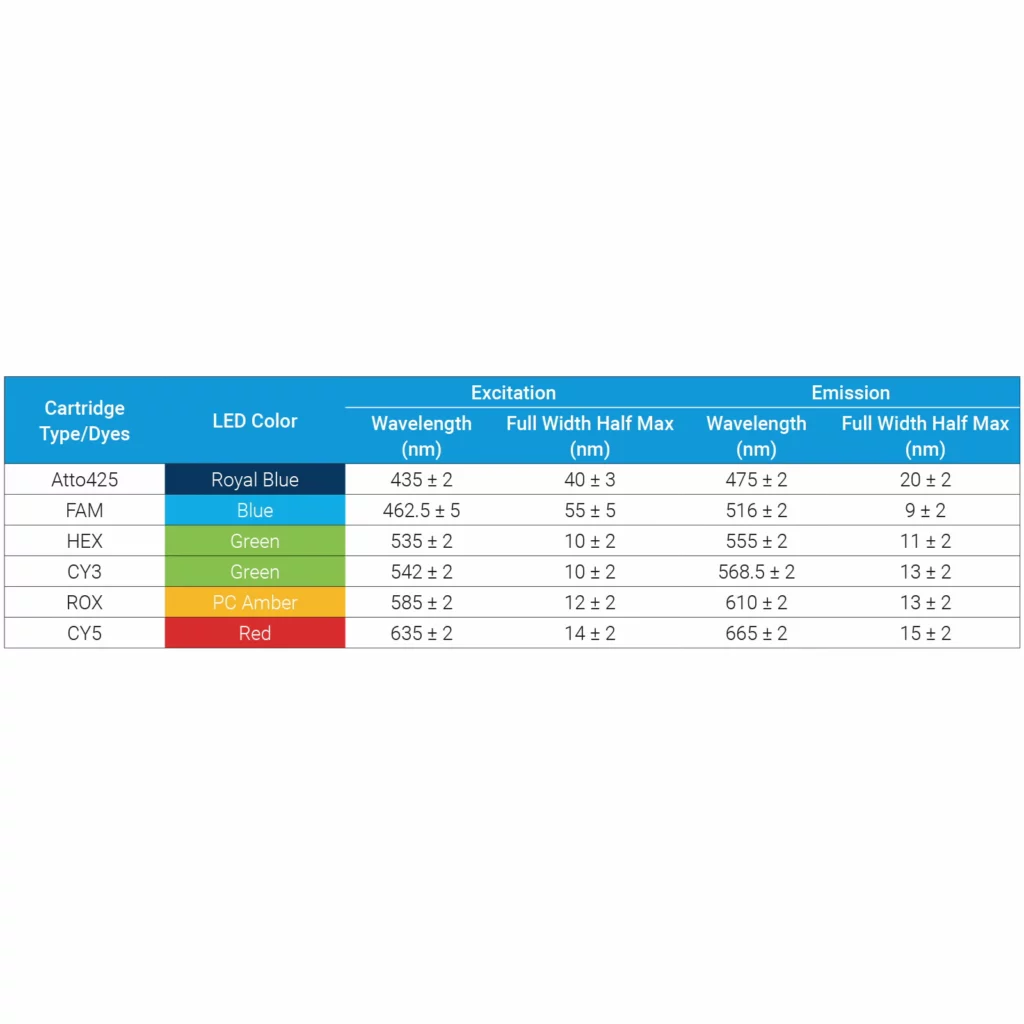

Optical Module Types	SYBR/FAM ROX HEX CY5 CY3 ATTO425
PCR Uniformity	±0.4 °C
Protocol Storage Count	5GB
Reaction Volume	10-30 µL
Remote Monitoring	Yes
Self-Installable Optical Modules	Yes
Software Included	Free software including LIMS connectivity feature
Software Upgrade Statements	Available online, no charge
Standard Warranty Length	1 yr
Thermal System Temperature Range	25.0-99.9 °C
