5500 Series Compact FTIR Spectrometer

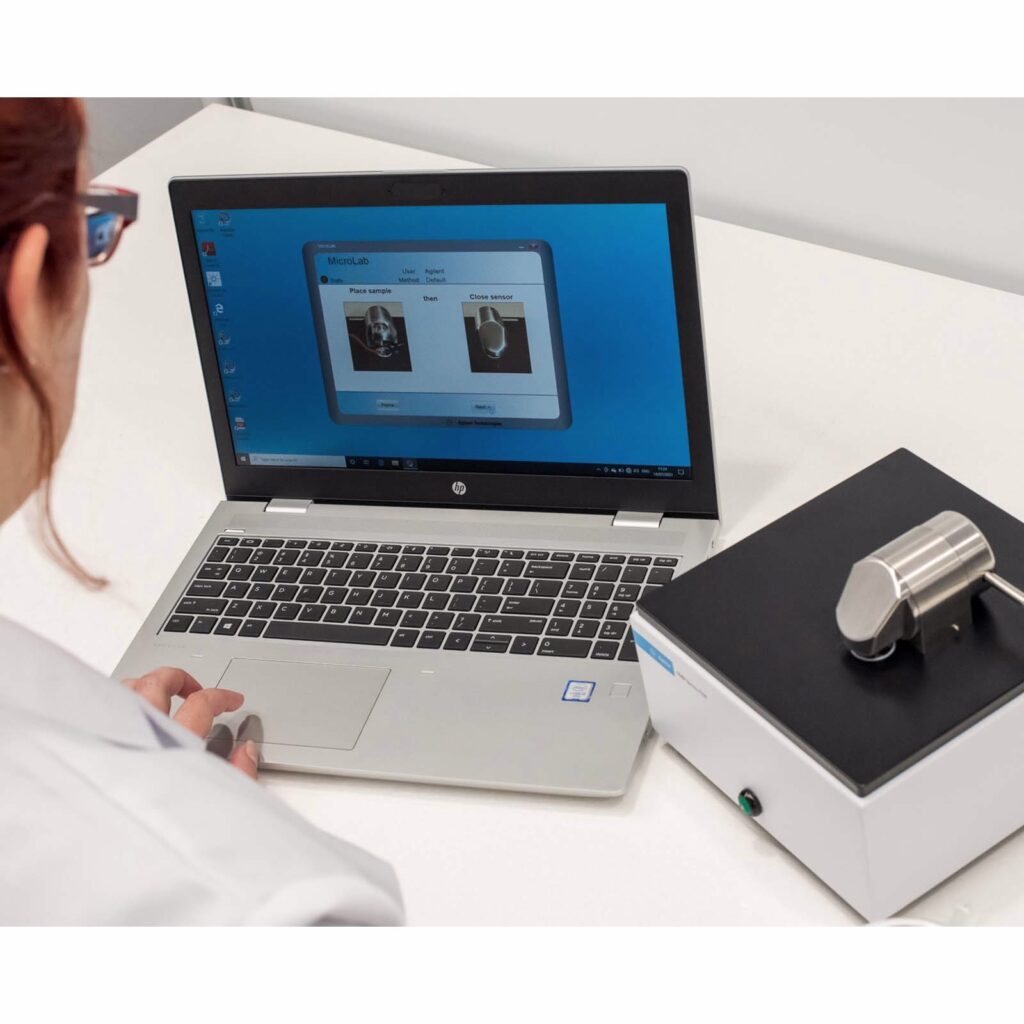

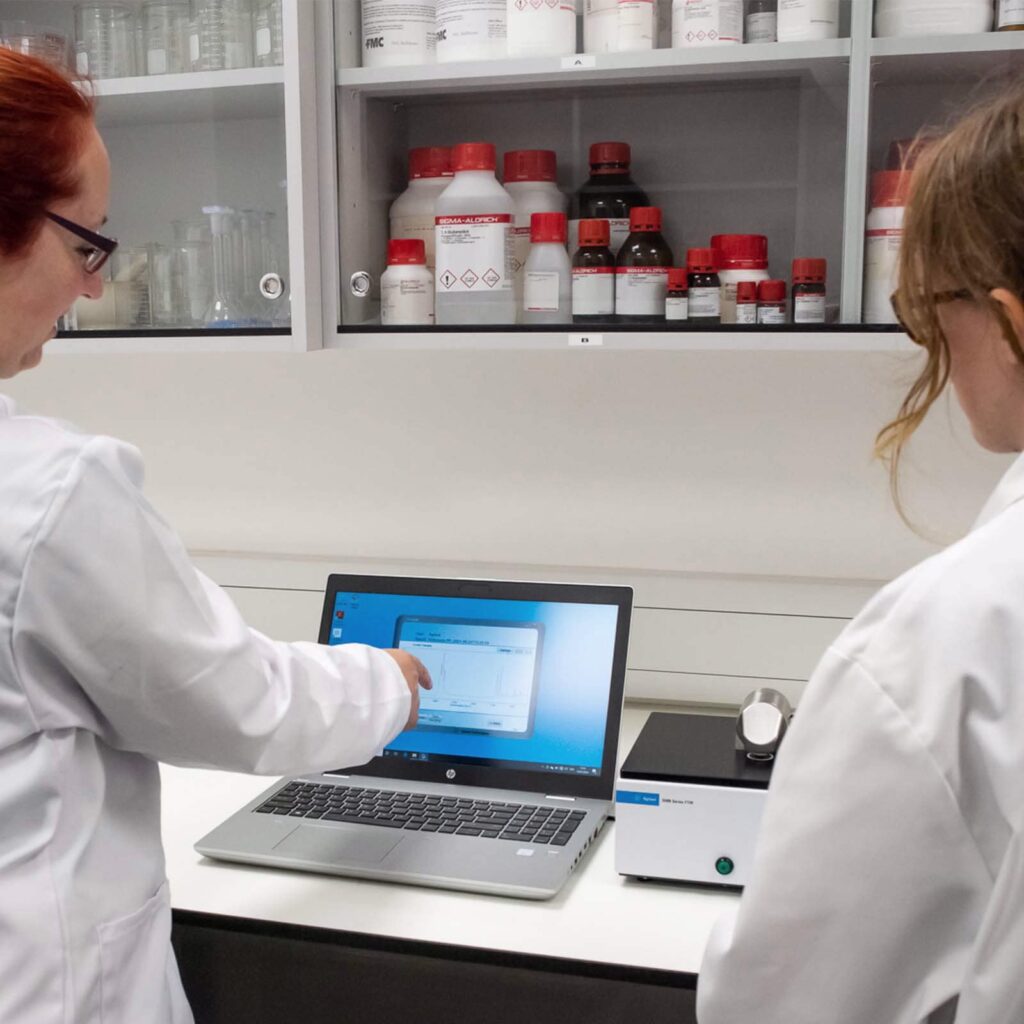

The Agilent 5500 compact FTIR spectrometer is designed as an at-side FTIR analyzer to provide you with great results, rapidly and reliably, day after day. The combination of great performing optics, innovative sampling interfaces, and intuitive software provides information on liquid and solid samples faster and easier than ever before.

5500 Series Compact FTIR Spectrometer

Product Details

Features

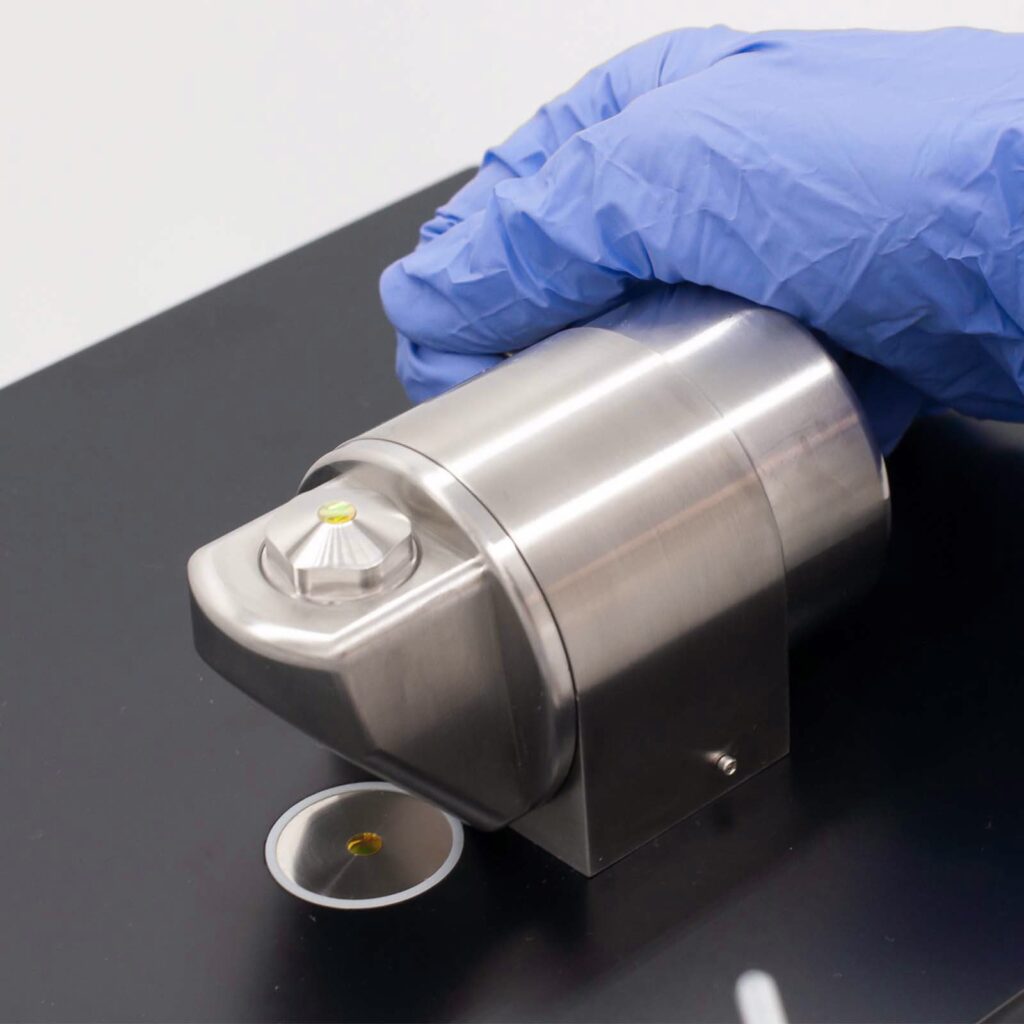

Get the longer pathlength capabilities of transmission spectroscopy in a format that is as easy to use as ATR with the 5500 DialPath analyzer
Quickly analyze a sample by placing a single drop of the liquid on the surface of the 5500t analyzer, then rotating a second window into position to sandwich the sample
One, three, or five reflection-diamond ATRs are available, depending on the application, including single reflection diamond ATR for solids and liquids identification and multi-reflection ZnSe ATR for liquid analysis
Intuitive, method-driven, multi-language software guides users through every step of operation, while color-coded alerts make it easy to see whether samples meet specifications
MicroLab Quant provides a simple, guided quantitative methods development package
Optional MicroLab Pharma supports compliance with data integrity regulations.

Specifications

Control Software	Microlab MicroLab Expert
Depth	20 cm
Height	11 cm
Libraries	Wide range of ready-to-use, application specific libraries available
Power Requirements	100-240 VAC, 50/60 Hz
Resolution	2 to 16 cm^-1
Sample Type	Solids Pellets Liquids Pastes Powders Gels
Sampling Module Options (fixed)	Diamond-ATR Multireflection ZnSe-ATR TumblIR DialPath
Spectral Range	4,000 to 650 cm^-1
Type	Compact FTIR Spectrometer
Weight	3.6 kg
Width	20 cm

Technology

ATR-FTIR Spectroscopy

Attenuated total reflectance (ATR) is the most widely used sampling methodology for Fourier transform infrared (FTIR) spectroscopy. ATR-FTIR quickly and easily measures a broad range of sample types, including liquids, solids, powders, semisolids, and pastes. Learn about how ATR-FTIR works, the different types of ATR sampling accessories available, and their applications.

Transmission FTIR Spectroscopy

Transmission FTIR mode is suitable for liquids, gases, powders, and films. Learn about how transmission FTIR spectroscopy works, the different types of transmission FTIR sampling accessories available, and their applications.
